RL78/G1H CHAPTER 15 SERIAL INTERFACE IICA

R01UH0575EJ0120 Rev. 1.20 Page 493 of 920

Dec 22, 2016

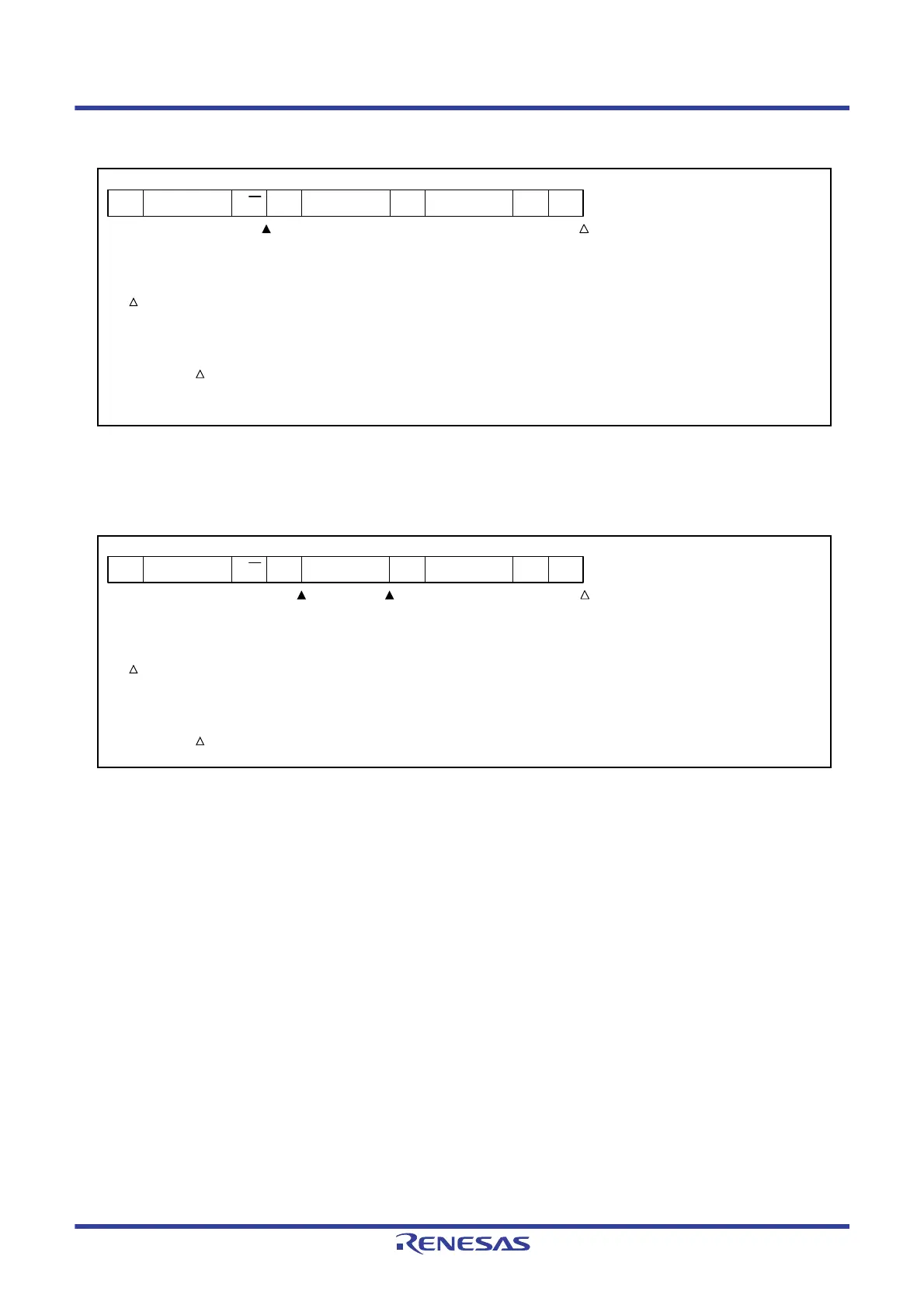

(b) When arbitration loss occurs during transmission of extension code

(i) When WTIMn = 0

Remark n = 0, 1

ST AD6 to AD0 D7 to D0R/W ACK ACK SPD7 to D0 ACK

2 1

▲1: IICSn = 0110×010B

Sets LRELn = 1 by software

2: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care

ST AD6 to AD0 D7 to D0R/W ACK SPD7 to D0 ACKACK

3 1 2

▲1: IICSn = 10001110B

▲2: IICSn = 01000000B

3: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1
