RL78/G1H CHAPTER 15 SERIAL INTERFACE IICA

R01UH0575EJ0120 Rev. 1.20 Page 494 of 920

Dec 22, 2016

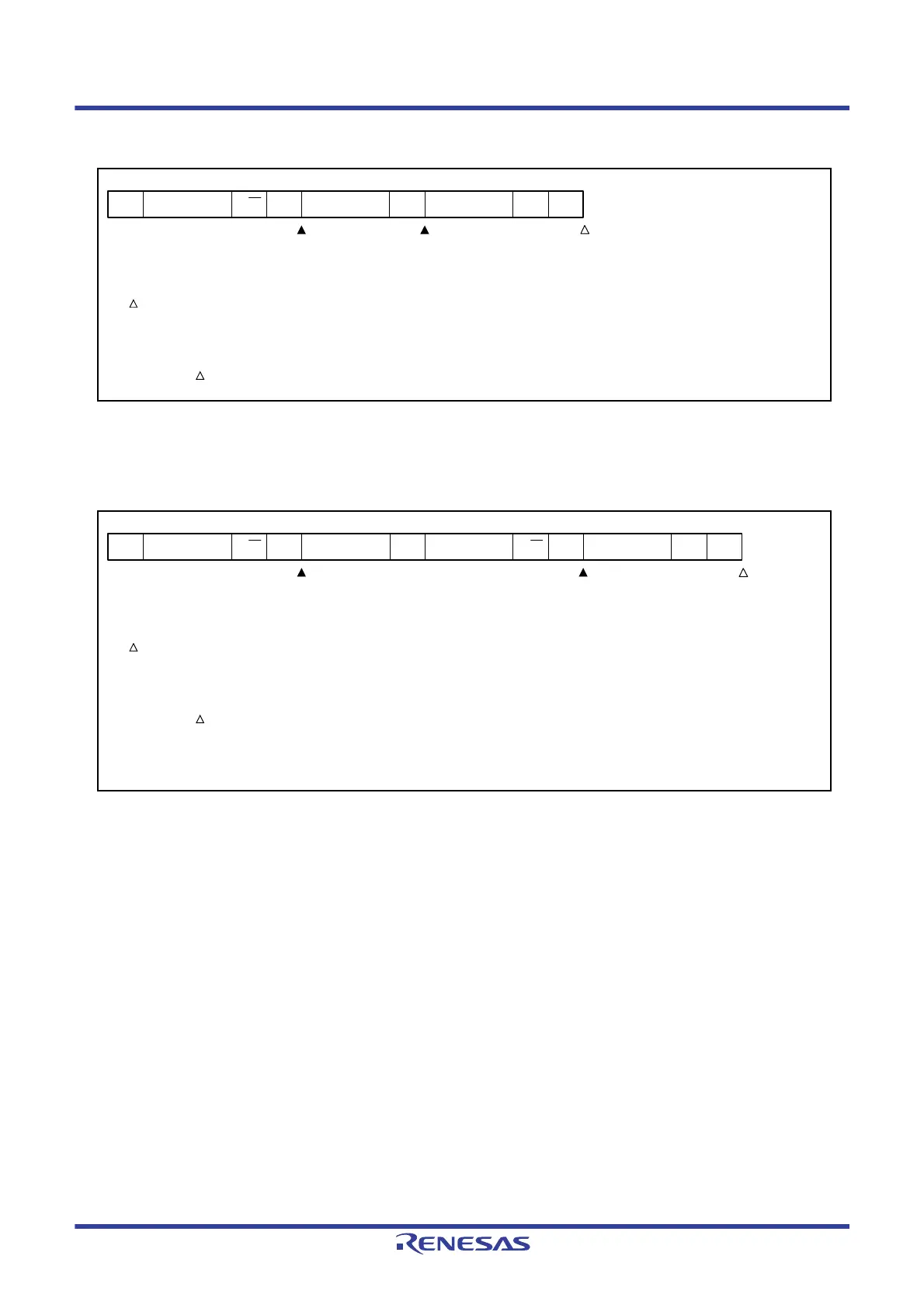

(ii) When WTIMn = 1

(d) When loss occurs due to restart condition during data transfer

(i) Not extension code (Example: unmatches with SVAn)

Remark n = 0, 1

ST AD6 to AD0 D7 to D0R/W ACK SPD7 to D0 ACKACK

3 1 2

▲1: IICSn = 10001110B

▲2: IICSn = 01000100B

3: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

ST AD6 to AD0 D7 to DmR/W ACK SPD7 to D0 ACKST AD6 to AD0 R/W ACK

2 1

▲1: IICSn = 1000×110B

▲2: IICSn = 01000110B

3: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care

m = 6 to 0
