RL78/G1H CHAPTER 15 SERIAL INTERFACE IICA

R01UH0575EJ0120 Rev. 1.20 Page 495 of 920

Dec 22, 2016

(ii) Extension code

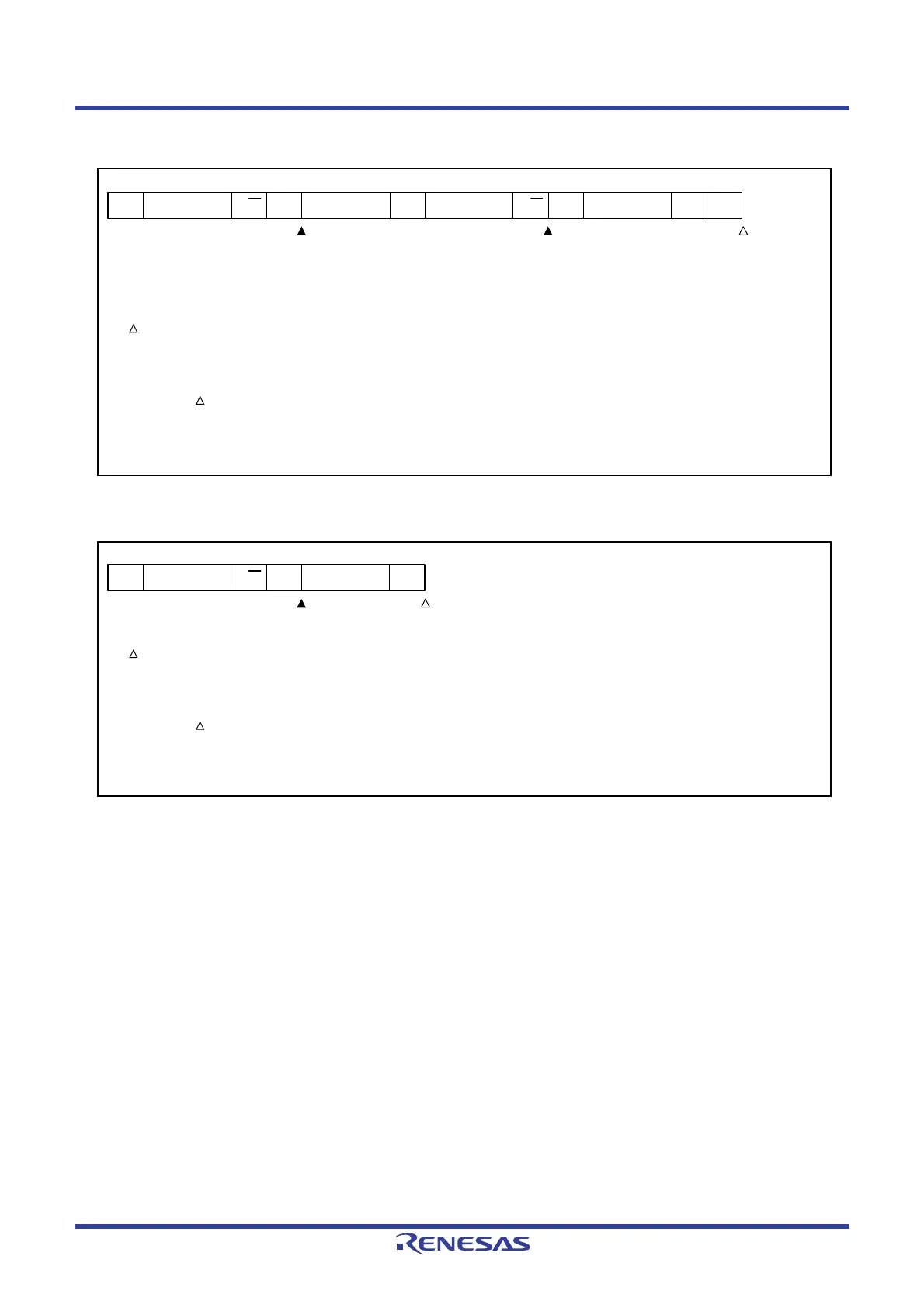

(e) When loss occurs due to stop condition during data transfer

Remark n = 0, 1

ST AD6 to AD0 D7 to DmR/W ACK SPD7 to D0 ACKST AD6 to AD0 R/W ACK

3 2 1

▲1: IICSn = 1000×110B

▲2: IICSn = 01100010B

Sets LRELn = 1 by software

3: IICSn = 00000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care

m = 6 to 0

ST AD6 to AD0 D7 to DmR/W ACK

2 1

▲1: IICSn = 10000110B

2: IICSn = 01000001B

Remark ▲: Always generated

: Generated only when SPIEn = 1

× : Don’t care

m = 6 to 0
