Renesas RL78/G1H

RL78/G1H CHAPTER 18 RF TRANSCEIVER
R01UH0575EJ0120 Rev. 1.20 Page 605 of 920
Dec 22, 2016
(37) Automatic receive switch compare register (AUTORCVCNT)
This register is used to set the time until the TRG_ON signal is set to the high level for the automatic receive
switch after the completion of transmit/receive when the mode is set to the automatic receive switch mode.
Initial value: 000AH = 10 symbols (Set value: 1H = 1 symbol)
The AUTORCVCNT register consists of 16 bits and can be accessed (serial interface communication) in 8
bit unit.
Reset signal generation sets this register to 000AH.

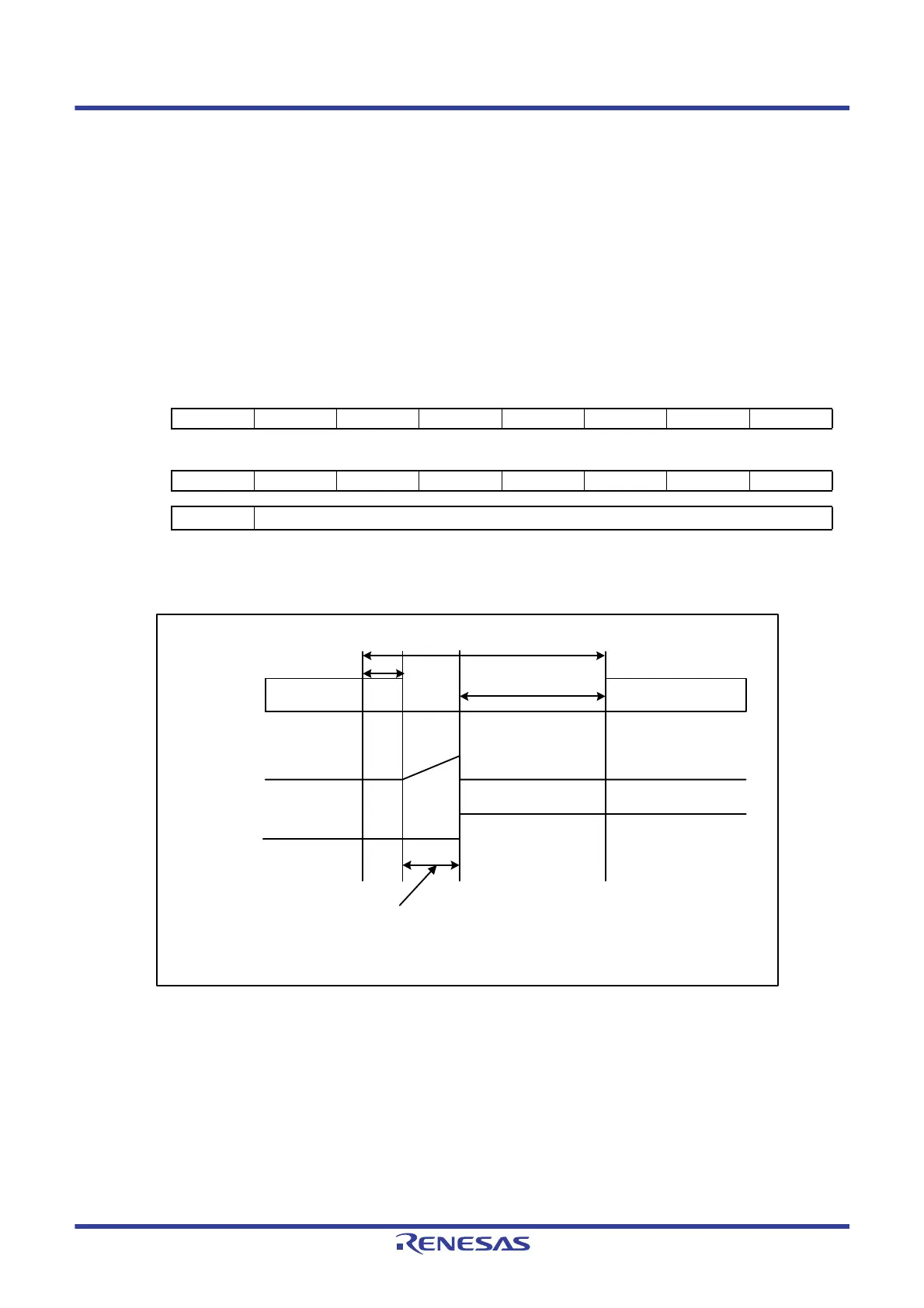

Figure 18 - 49 Automatic Receive Switch Compare Register (AUTORCVCNT) Format
Figure 18 - 50 Automatic Receive Switch Compare Register Count Operation
Address:
0049H, 0048H
After reset:
000AH
R/W
Symbol 15 14 13 12 11 10 9 8
AUTORC
VCNT
76543210
AUTORCVCNT Time until the TRG_ON signal is set to the high level
240 µs
Rx
Rx or Tx
Communication
status
Counter value
TRG_ON
The auto-receive switch compare
register counts this period.
Note "a" involves several symbols of unevenness.
240 µs + Setting value + a
Note
a
