RL78/G1H CHAPTER 23 VOLTAGE DETECTOR

R01UH0575EJ0120 Rev. 1.20 Page 765 of 920

Dec 22, 2016

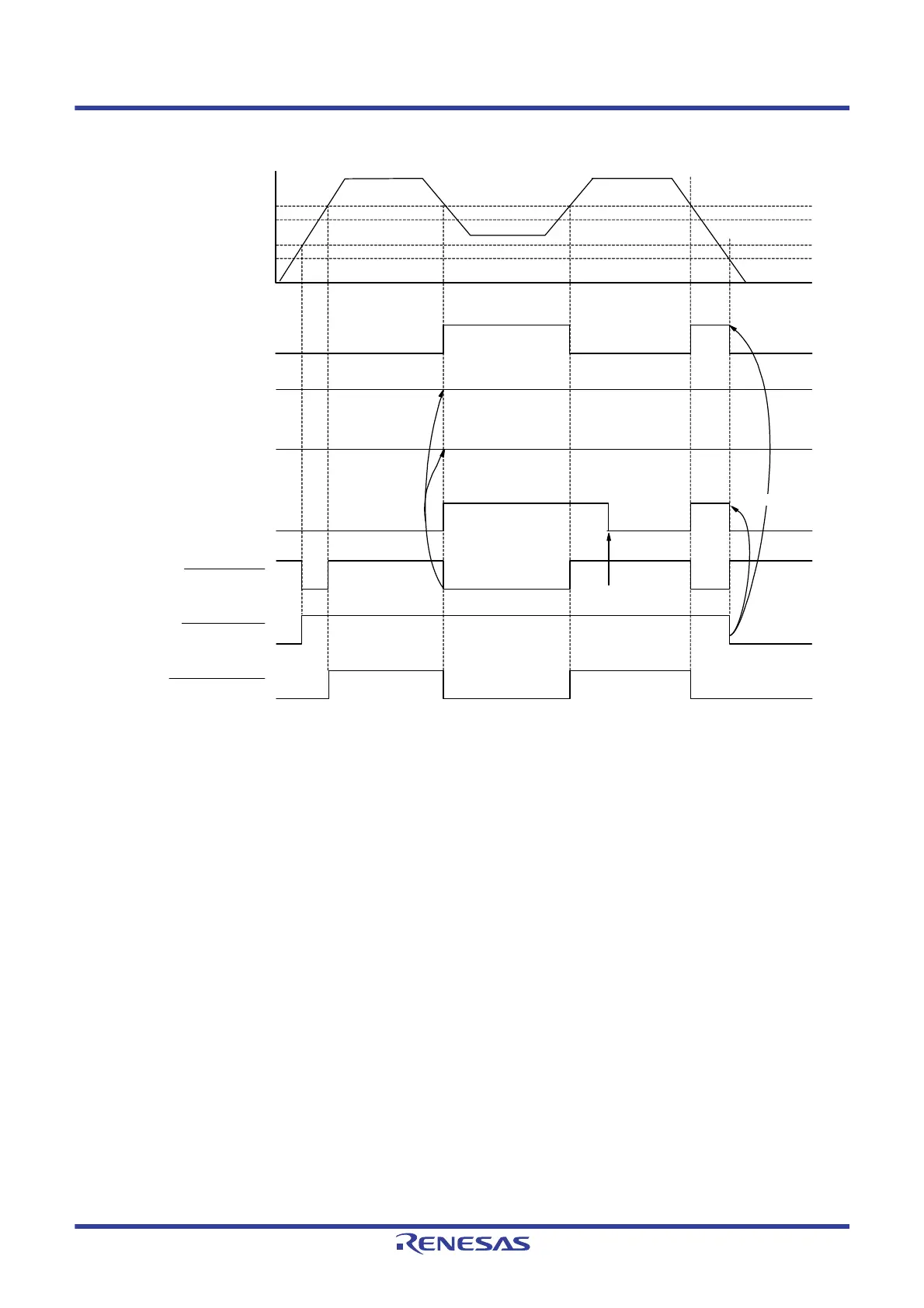

Figure 23 - 4 Timing of Voltage Detector Internal Reset Signal Generation (Option Byte LVIMDS1, LVIMDS0 = 1, 1)

Remark VPOR: POR power supply rise detection voltage

PDR: POR power supply fall detection voltage

Time

LVIF flag

LVIMD flag

LVIRF flag

(RESF register)

LVILV flag

Internal reset signal

POR reset signal

LVD reset signal

Supply voltage (VDD)

LVD

VPOR = 1.51 V (TYP.)

PDR = 1.50 V (TYP.)

Lower limit of operation voltage

Not cleared

Cleared

Cleared by software

Cleared
