VPN Configuration

19.2 Configuring a Tunnel from an AP to a Mobility Controller

SCALANCE W1750D UI

314 Configuration Manual, 02/2018, C79000-G8976-C451-02

In the SCALANCE W UI

To configure an L2TPv3 tunnel and session profile:

Click the

More > VPN

link located directly above the Search bar in the SCALANCE W UI.

The

Tunneling

window is displayed.

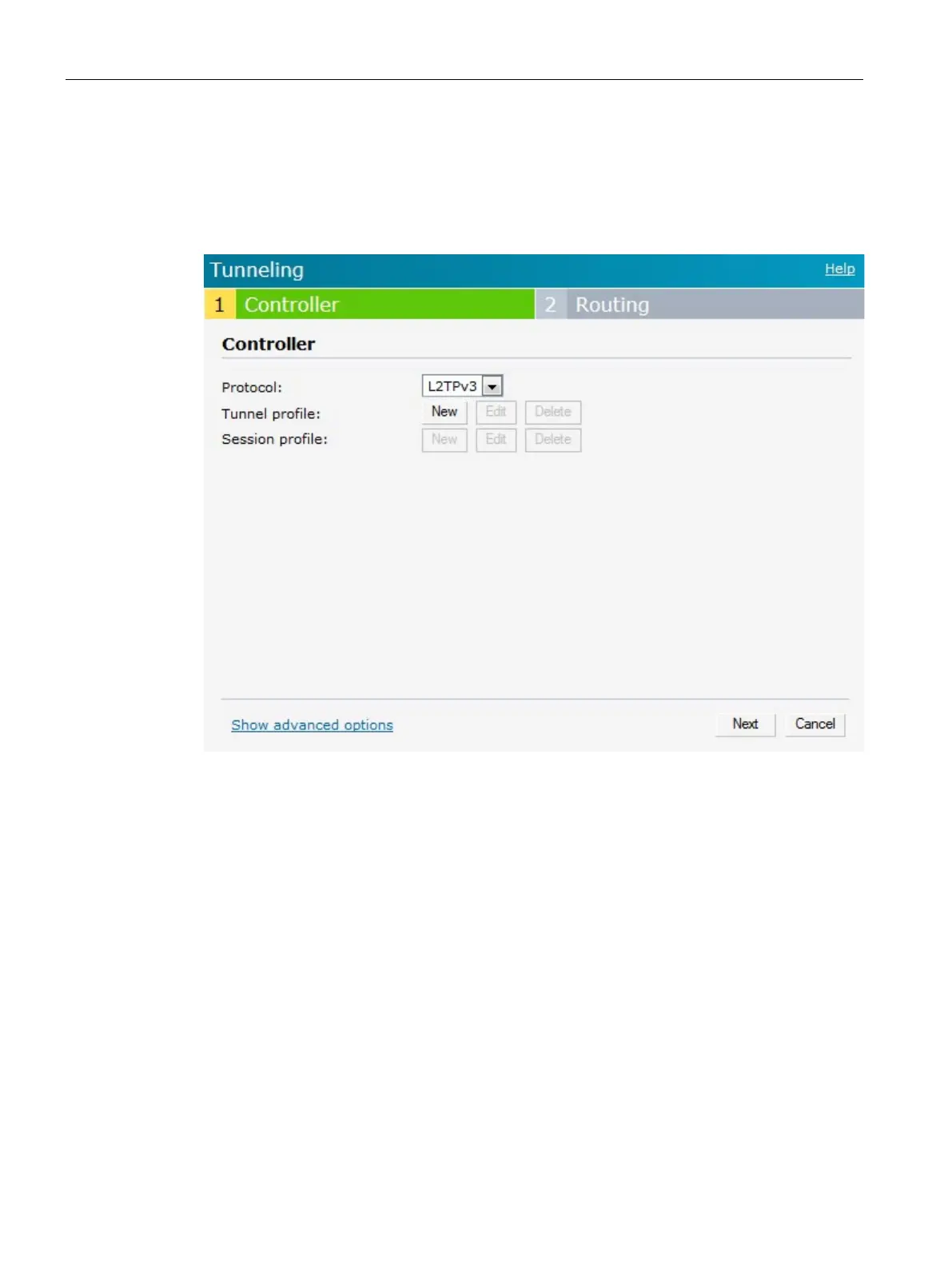

Figure 19-4 L2TPv3 Tunneling

2. Select

L2TPv3

from the

Protocol

drop-down list.
