AP-VPN Deployment Scenarios

35.4 Scenario 4 - GRE: Single Datacenter Deployment with No Redundancy

SCALANCE W1750D UI

548 Configuration Manual, 02/2018, C79000-G8976-C451-02

Topology

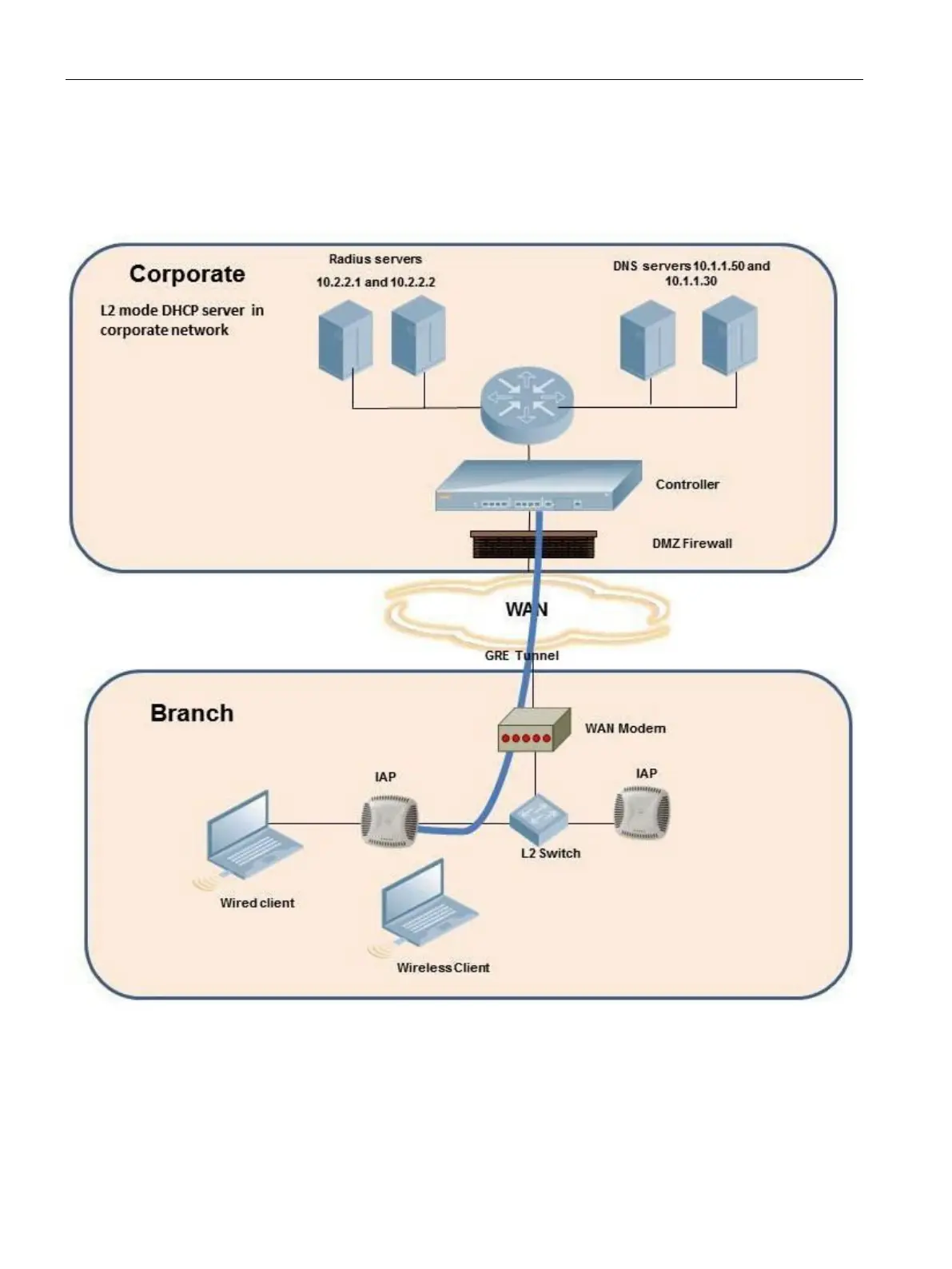

The follwoing Figure shows the topology and the IP addressing scheme used in this

scenario:

Figure 35-4 Scenario 4 - GRE: Single Datacenter Deployment with No Redundancy
