415DME
Chapter 11 DME Operations

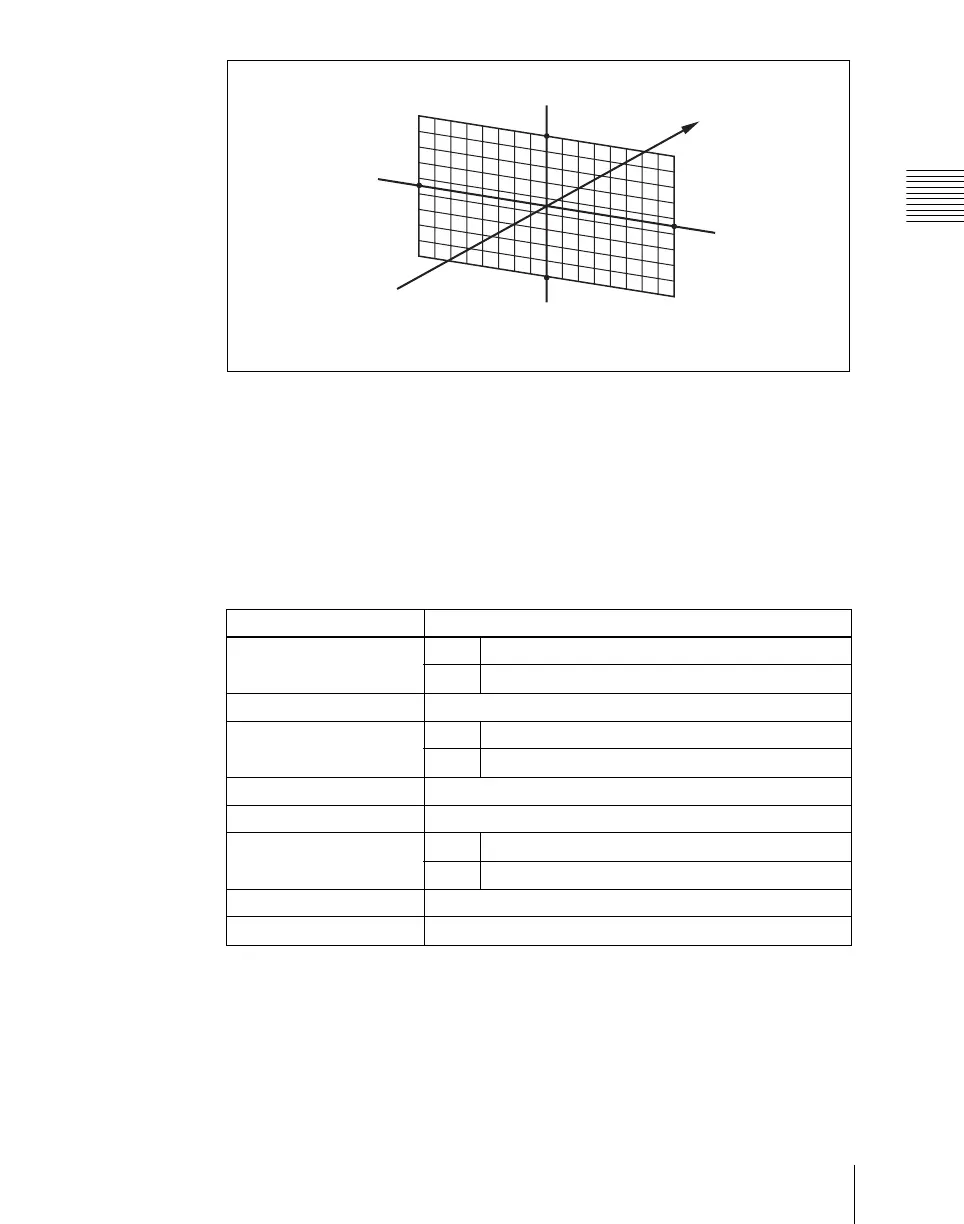

Values for x-, y- and z-axes (16:9 mode)
Limits of three-dimensional parameters
The following table shows the limits of three-dimensional transformation
parameters.
The three-dimensional parameters of an image change when you use the
trackball or Z-ring to execute a transformation. You can also execute a
transformation by entering parameter values from the numeric keypad control
block.
Detents
The system defines points called detents at regular intervals on the three-
dimensional space. Pressing the [CTR] button (page 426) in the device control
block sets the current three-dimensional parameter values to the closest detent
points.
Operation mode Limits of three-dimensional transformation parameters
Location XYZ 4:3 –333.3333 to +333.3333
16:9 –250.0000 to +250.0000
Rotation, Spin –999.9999 to +999.9999
Axis Location 4:3 –333.3333 to +333.3333
16:9 –250.0000 to +250.0000
Location Size 0.0000 to +999.9999
Aspect 0.0000 to +2.0000
Perspective (x, y) 4:3 –333.3333 to +333.3333
16:9 –250.0000 to +250.0000
Perspective (z) 0.0000 to 999.9999
Skew –999.9999 to +999.9999
–4.00
+4.00
+2.25
–2.25
x-axis
z-axis −
y-axis
y-axis
z-axis +
The plus direction on the
z-axis is depth into the
image or monitor screen.
x-axis
