DME Special Effect Operations
Top to Bottom: Reflect top side on bottom.
Bottom to Top: Reflect bottom side on top.
To set the position of the border between original and reflection
1 Press [Position].
2 Set the following parameters.
Multi Mirror settings
You can set the width of the original, the center position of the original, the
offset of the image with fixed mirrors, the direction of the mirrors, and other
parameters.
To apply the Multi Mirror effect
With the Multi Mirror menu displayed, set the following parameters.

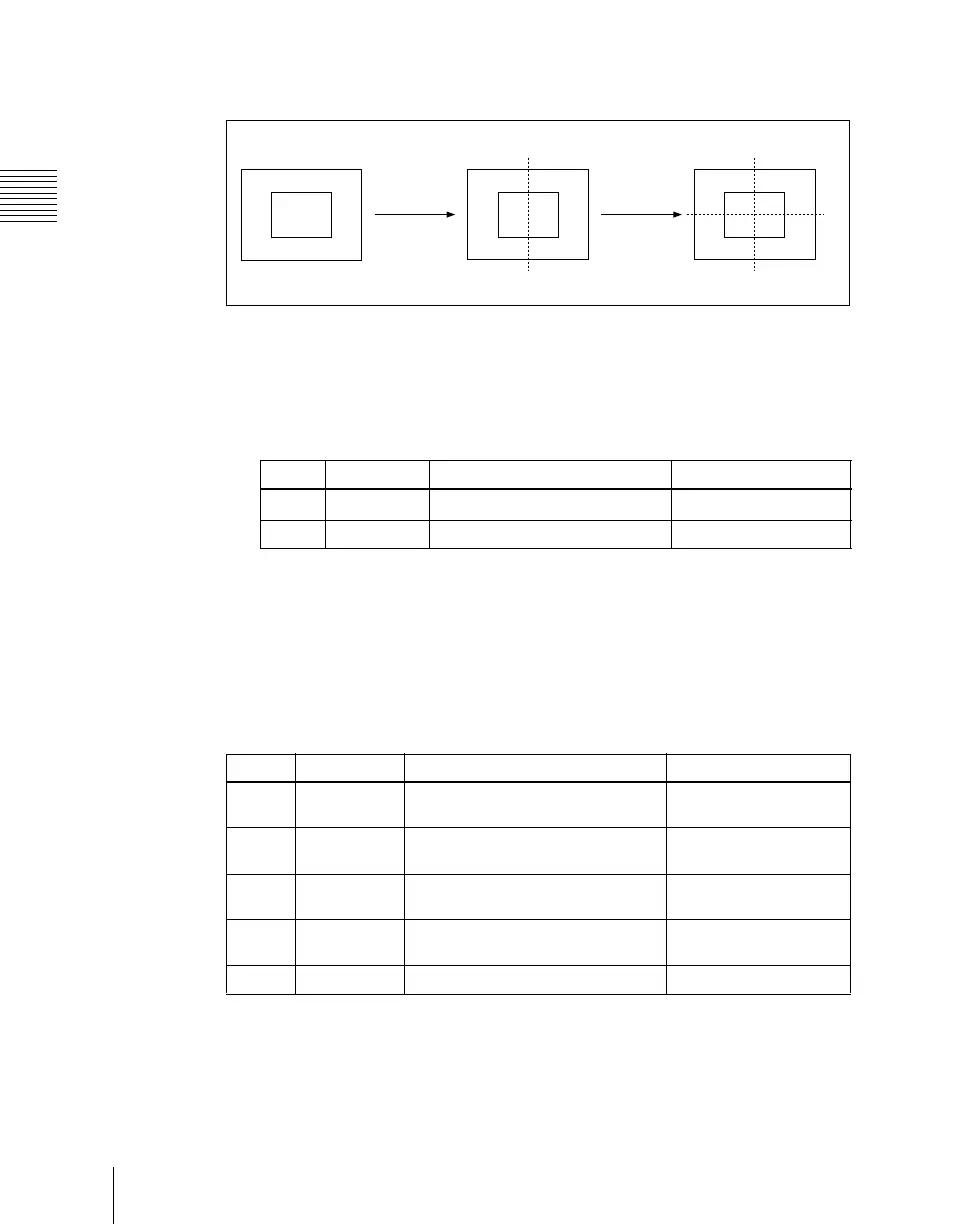

To set the center position of original image
1 Press [Position], turning it on.
SONY
DME
SO
DM
SO
D
SO SO
SO SO
Left to Right
Top to
Bottom
Knob Parameter Adjustment Setting values
1 H Horizontal border position
–8.000 to +8.000
2 V Vertical border position –6.000 to +6.000
Knob Parameter Adjustment Setting values
1 Interval H Horizontal distance between
mirrors (original width)
0.000 to 10.000
2 Offset H Amount of horizontal offset of
image with mirrors fixed
–4.000 to +4.000
3 Interval V Vertical distance between mirrors
(original width)
0.000 to 10.000
4 Offset V Amount of vertical offset of image
with mirrors fixed
–4.000 to +4.000
5 Angle Mirror angle –8.000 to +8.000
