DME Special Effect Operations
Non Linear: Spotlighting effect is applied to an area to which a DME
nonlinear effect is applied.
Note
The BZS-9471 or BZDM-9050 is required to enable Texture and Non Linear
settings.
Test sphere function
A test sphere is a translucent sphere virtually embedded in the center of the
input picture to provide an intuitive way for you to check the position and
direction of the spotlight. When you change the position or direction of a light
source, the side of the sphere closest to the light source grows brighter. You can
easily check the position and direction of the light source by viewing the test
sphere.
For more information about test sphere, see “Relation between test spheres
and parallel rays” (page 541).
Coordinate axis on surface of image
Specify where to apply the texture or test sphere on the image surface.
Move: The texture moves together with the DME image.
Fix: The texture does not move, even if the DME image moves.

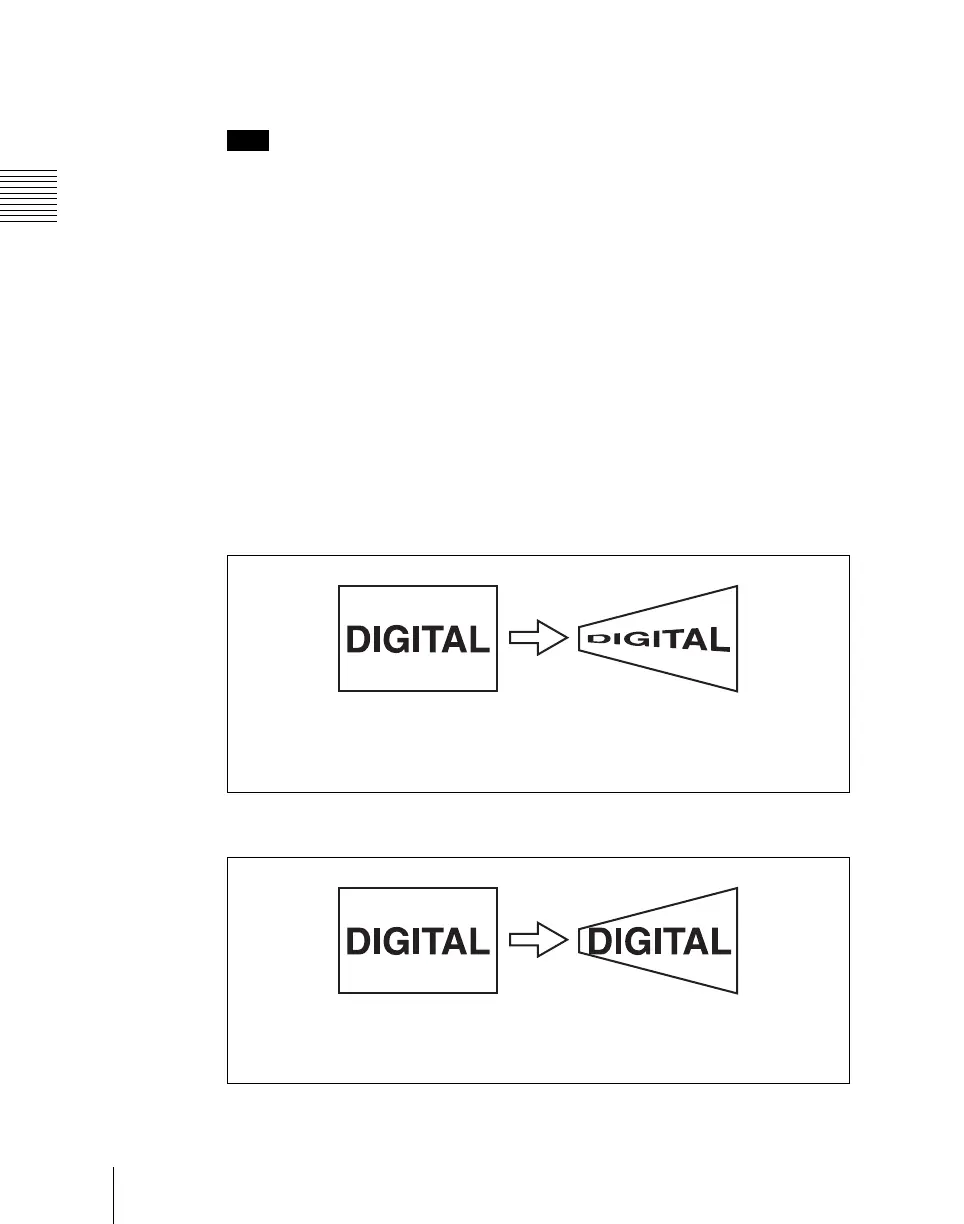

Image before movement Coordinate axis = Move
Texture moves together
with DME image.
Image before movement Coordinate axis = Fix
Texture does not move, even
if DME image moves.
