Still RX50-13 - Checking the Vertical Lift Mast Position (Variant) for Correct Function

Operation 5
Commissioning
6210_003-067_V2
2
1
Checking the vertical lift mast
position (variant) for correct function
NOTE
The function check of the lift mast vertical
position (variant) must be carried out every
time a truck is commissioned.

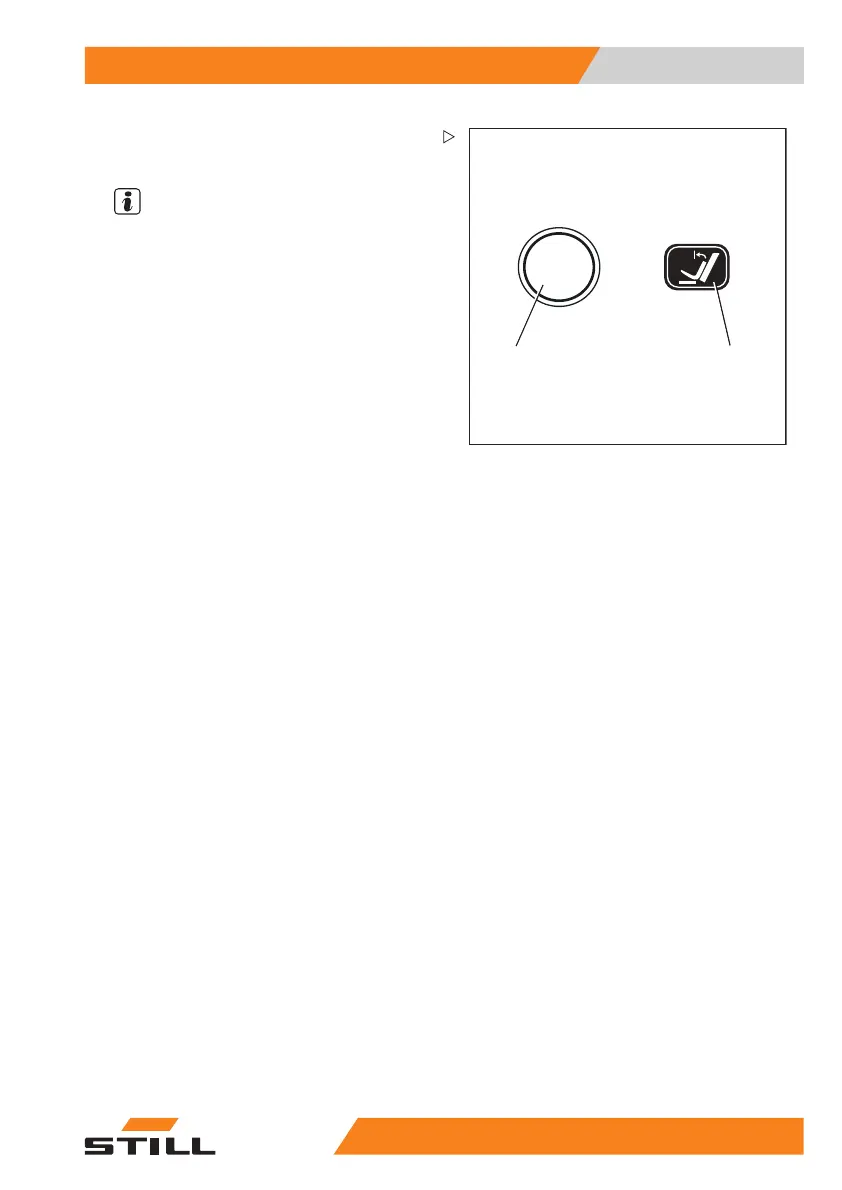

– Actuate function key (1)
to switch on the
comfort feature "lift ma
st vertical position".
Function display (2) must appear in the
display.
– Tilt the lift mast backwards.
Theliftmastmusttilt
back fully and move
gently as far as the end
stop.
– Tilt the lift mast forward.
The lift mast must tilt forwards and stop in the
vertical position.
– Release the operatin
gdevicetotiltand
actuate again.
The lift mast must tilt forwards fully and move
gently as far as the end stop.
