Operation 5
Lifting
Operation with reversible fork arms
(variant)

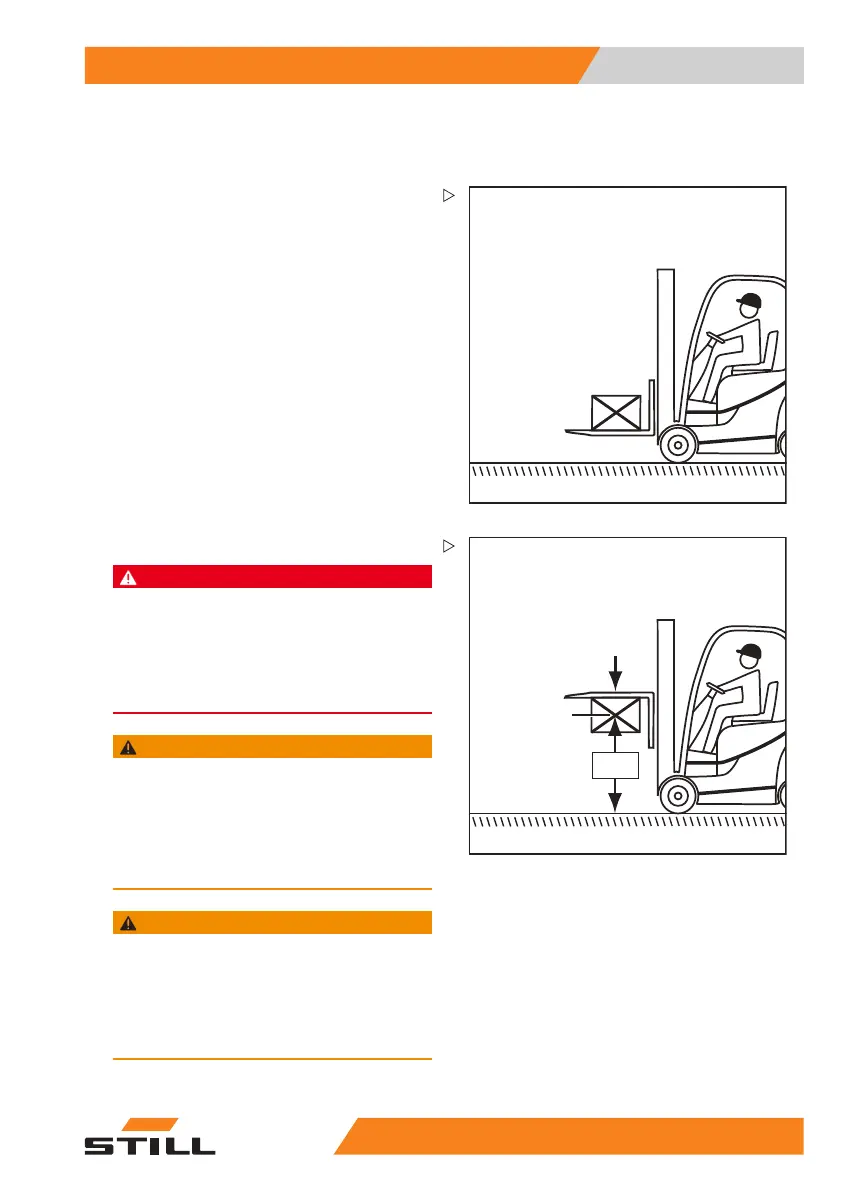

6210_862-013
Normal operation
The reversible fork arms (variant) can be lifted
and tilted with the lift mast in the same manner
as a normal fork.
6210_862-014
Max.
600 mm
2
1
Reverse operation
DANGER
Risk to life from falling load!
Standard fork arms are not structurally designed for
reverse operation. If this is not observed, this can
lead to material failure and the load falling.
– Do not carry out reverse operation with the
standard fork arms.
WARNING
Risk of accident from slipping load!
Loads may slip on the fork arms (1) if there is no
load support. A fork extension (variant) cannot be
secured against slipping.
– Load pick-up on the fork arms is not permitted.
– The fork extension (variant) must not be used.
WARNING
Risk of accident from the truck tipping over.
When driving, the centre of gravity of the load (2)
must not be higher than 600 mm above the ground.
The truck may tip forwards when driving or braking.
– Only drive with the load centre of gravity up to a
max. of 600 mm above the ground.
55
048011501 EN - 12/2015 145
