Still RX50-13 - Actuating the Drive Direction Switch, Multiple-Lever Version; Actuating the Drive Direction Switch, Mini-Lever Version

5 Operation
Driving
1
5060_003-095

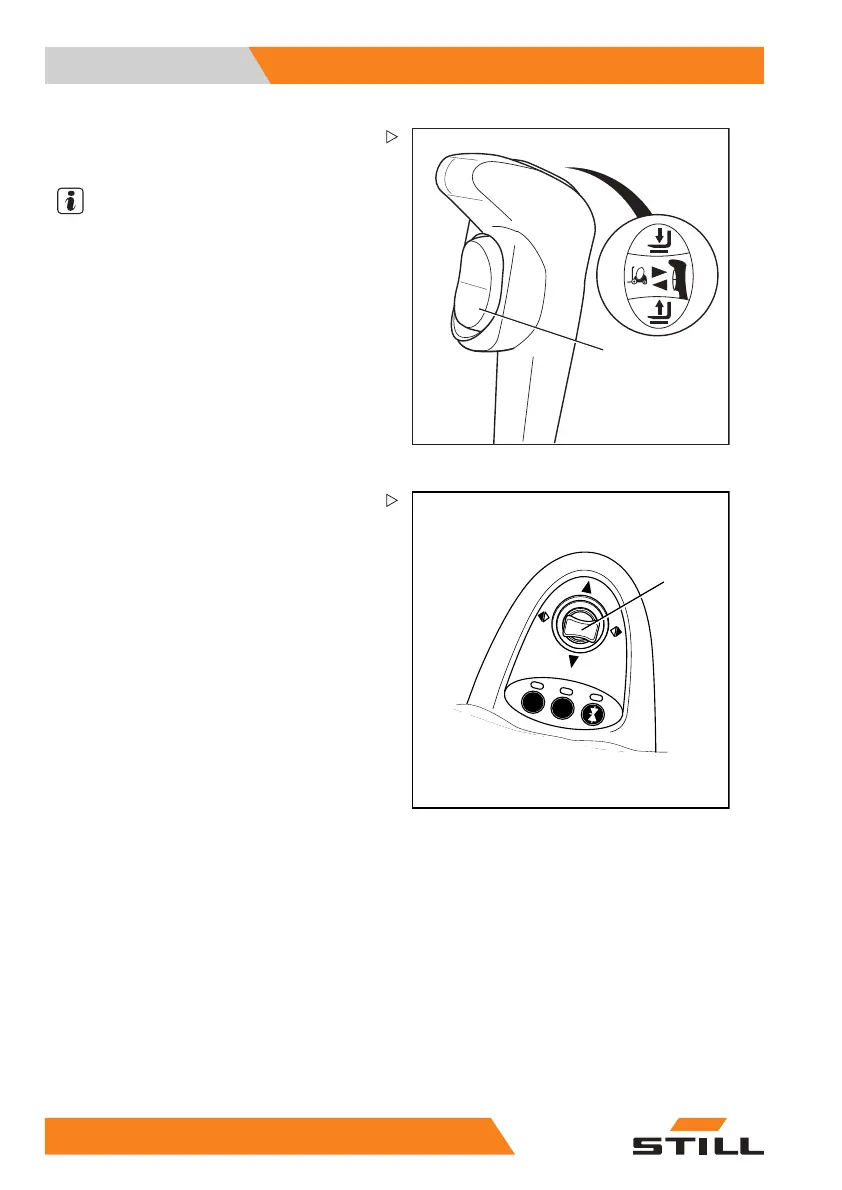

Actuating the drive direction switch,
multiple-lever version
NOTE
Before actuating the drive direction switch,
see the notes about choosing the drive
direction; see ⇒ Chapter "Selecting the drive
direction", P. 5-111.
– For the "forwards" drive d
irection, push the
drive direction switch (1
) downwards
– For the "backwards" drive direction, push
the drive direction switch upwards
5060_003-096
F1
F2
1
Actuating the drive direction switch,
mini-lever version
– For the "forwards" drive direction, push the
cross lever (1) forwards
–Forthe"backwa
rds" drive direction, push
the cross lever
backwards
11
