Still RX50-13 - Controlling Attachments Using a Triple Mini-Lever

5 Operation
Working with attachments
5060_003-108
1
2
A
C
B
D
5060_003-109_V2
AC
B
D

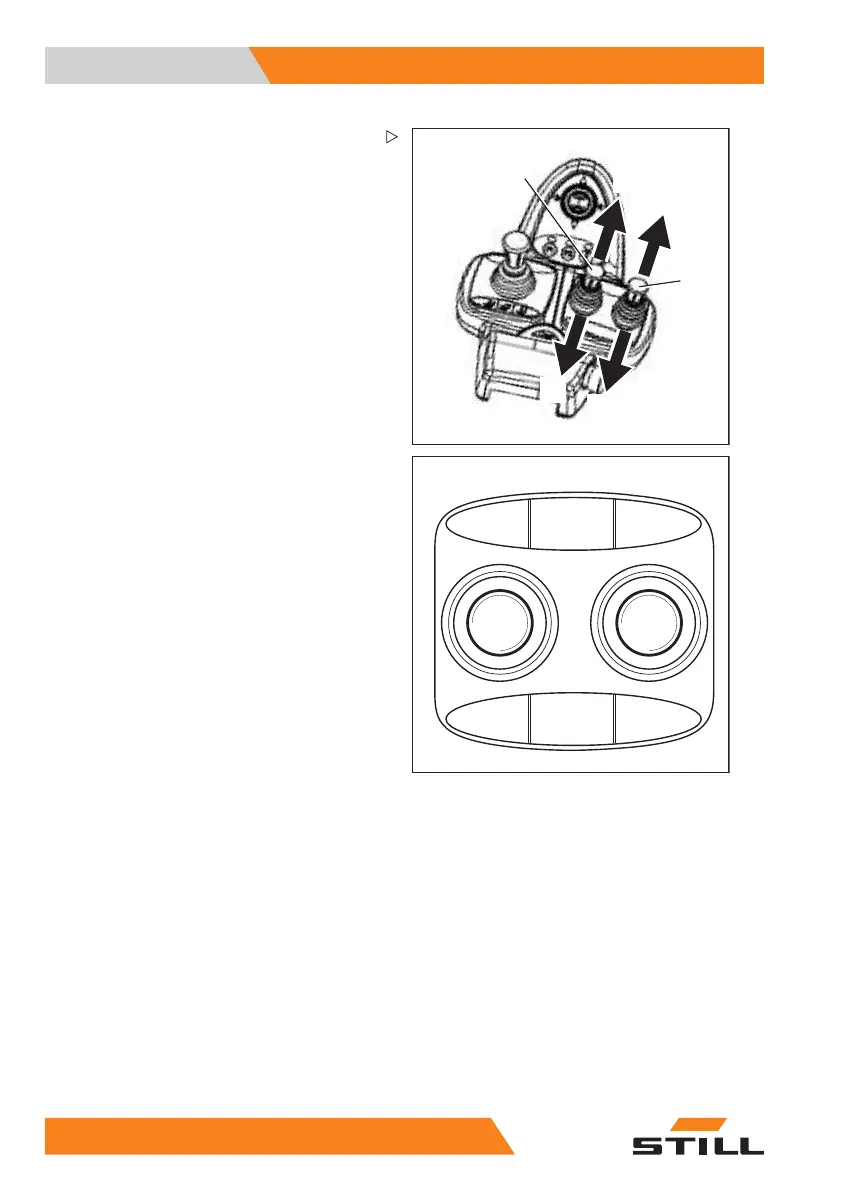

Controlling attachments using a
triple mini-lever
The attachments (variant) are controlled in
this version using operating levers (1) and (2).
The pictograms on the operating levers show
the respective functions that are activated by
these levers.
This essentially involve
s the following:
– Move the operating lever (1) towards (A)
The attachment moves in accordance with the
pictogram in position (A).
– Move the operating leve
r(1)towards(B)
The attachment moves in accordance with the
pictogram in position (B).
– Move the operating lever (2) towards (C)
The attachment moves in
accordance with the
pictogram in position (
C).
– Move the operating lever (2) towards (D)
The attachment moves in accordance with the
pictogram in position (D).
17
8 55048011501 EN - 12/2015
