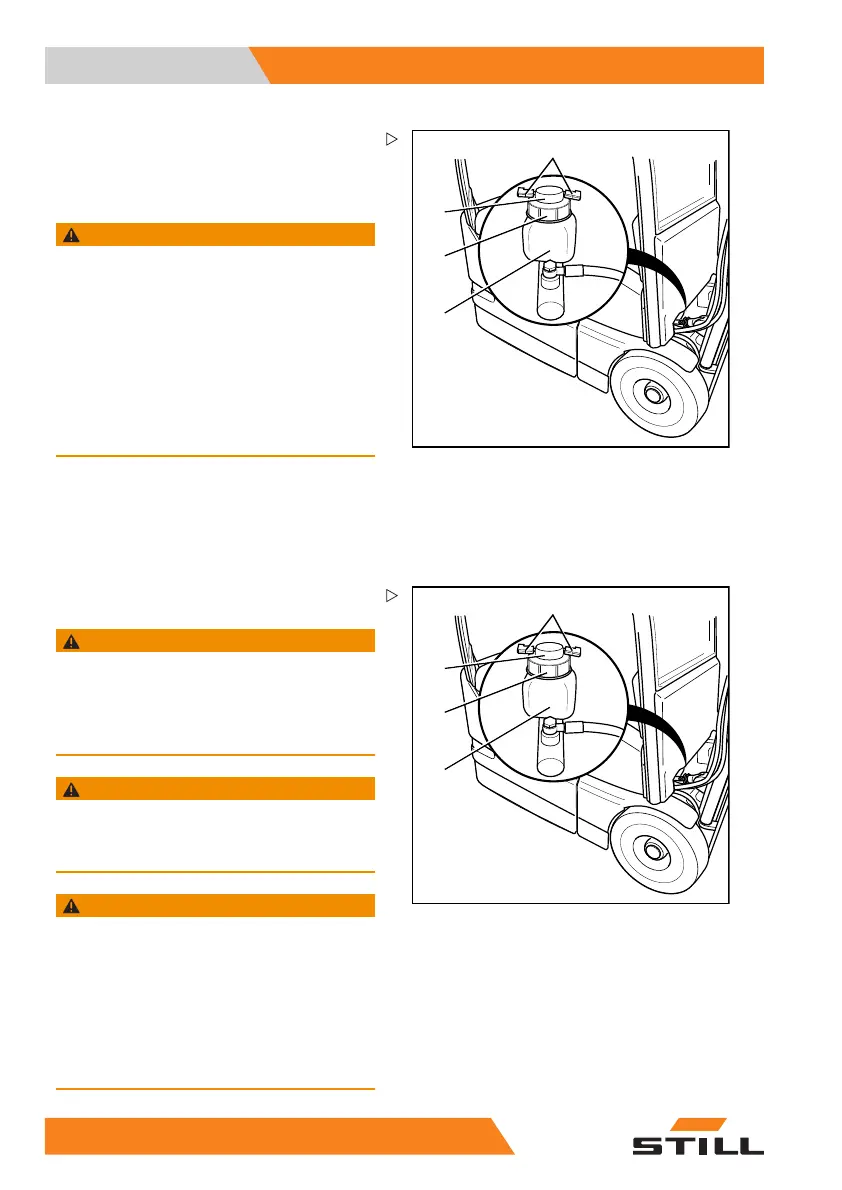

– Check the brake fluid level at the expansion
tank (1).
The brake fluid level must be between the
MAX and MIN marks.
WARNING
The brake fluid level sensor cables can tear off
when the filler cap is opened!
When the filler cap (2) is unscrewed, the cables (4)
must not be rotated also, otherwise the cables may
tear off. The brake fluid level sensor (3) is stored in
the rotatable filler cap and can be held in position
when turning the cover.
– Keep the brake fluid level sensor with cables in
position and unscrew the cover.
– If necessary, remove the cables before opening
the cover and reattach after servicing.
– Top up any missing brake fluid to the MAX
mark according to the maintenance data
table; see ⇒ Chapter "Maintenance data
table", P. 6-303.
4
1
2
3
5060_003-163
Checking the brake fluid level sensor
WARNING
Risk of injury from becoming trapped in moving
parts!
– Observe the safety regulations for working at the
front of the forklift truck, see ⇒ Chapter "Working
at the front of the truck", P. 6-308.
WARNING
Brake fluid is hazardous to your health!
– Observe the safety regulations for working with
brake fluid, see ⇒ Chapter "Brake fluid", P. 3-42
WARNING
The brake fluid level sensor cables can tear off
when the filler cap is opened!
When the filler cap (2) is unscrewed, the cables (4)
must not be rotated also, otherwise the cables may
tear off. The brake fluid level sensor (3) is stored in
the rotatable filler cap and can be held in position
when turning the cover.
– Keep the brake fluid level sensor with cables in
position and unscrew the cover.
32
