Operation 5
Lifting
F1
F2
5060_003-038
A
C
D
B
1
7312_003-114
7312_003-022_V2
DC
B
A

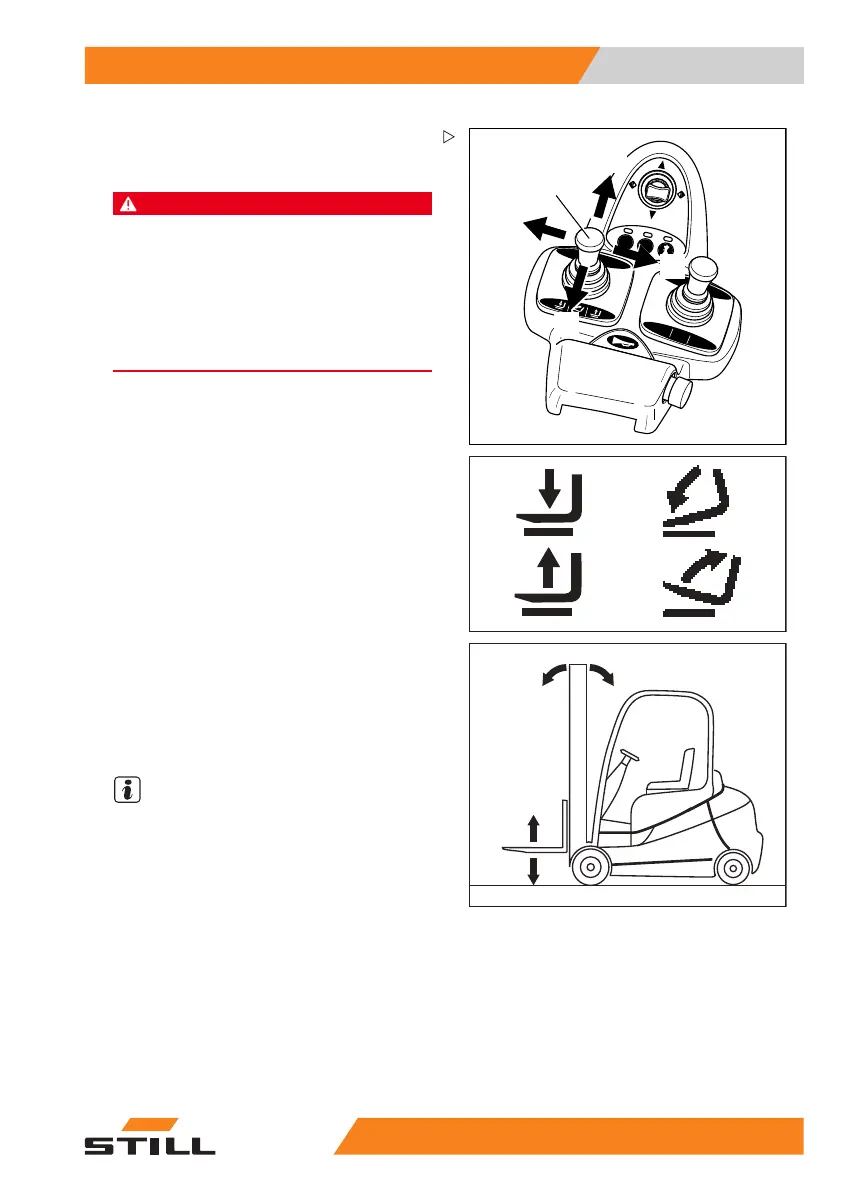

Controlling the lifting system using a
double mini-lever
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Only operate the lifting system from the driver’s
seat.
Lifting/lowering the fork carriage
To lift fork carriage:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (B).
To lower fork carriage:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (A).
Tilting the lift mast
To tilt the lift mast forwards:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (C).
To tilt the lift mast backwards:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (D).
NOTE
The symbols on the 360° lever show the
direction of movement of the lift mast and the
fork carriage when the 360° lever is moved.
55
048011501 EN - 12/2015 135
