Operation 5
Workingwithattachments
Load capacity with attachment
The permissible load capacity of the attach-
ment and the allowable load (load capacity
and load moment) of the truck must not be ex-
ceeded by the combination of attachment and
payload. The specifications of the manufac-
turer and supplier of the attachment must be
complied with.
– Observe the residual load ca
pacity rating
plate, see the chapter entit
led "Taking up a
load using attachments".
7090_900-001

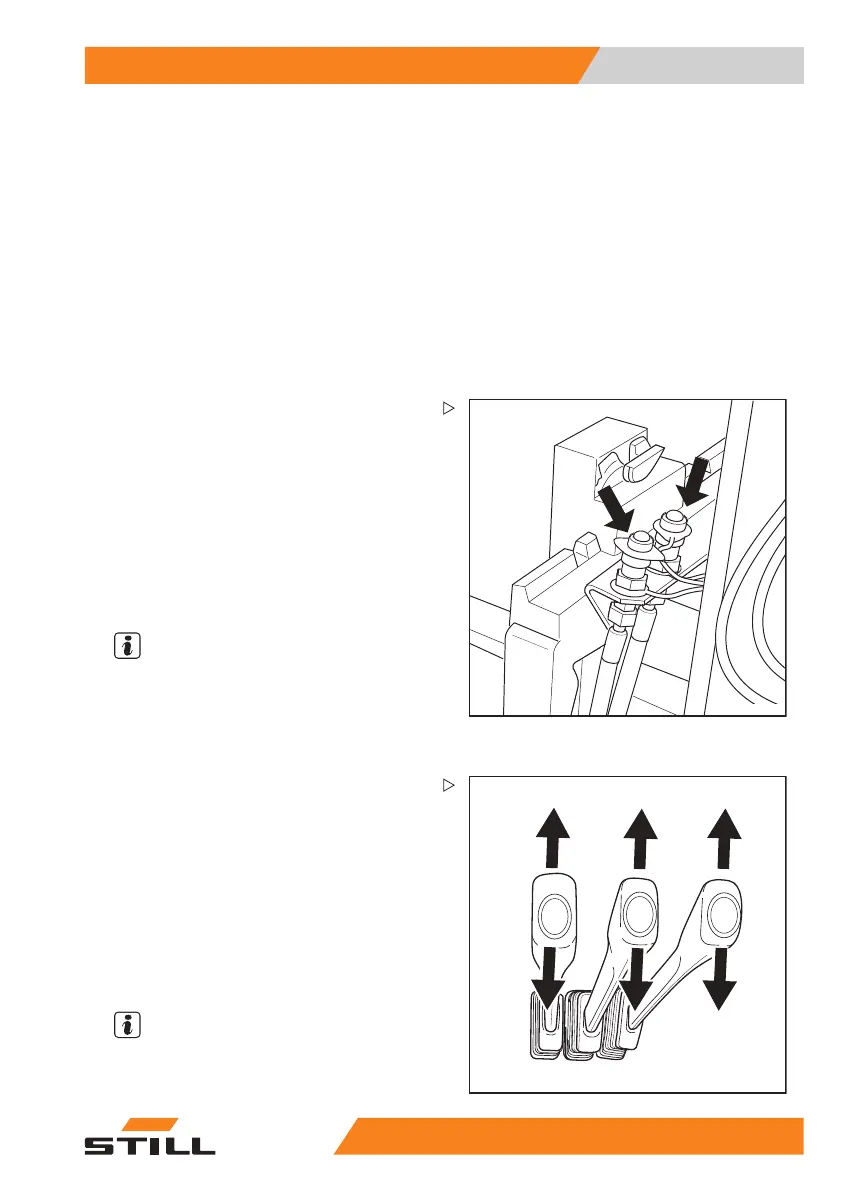

Releasing the pressure fro
mthe
hydraulic system
Prior to assembling att
achments, the plug
connectors must be depr
essurised.
Attachments must only be installed by au-
thorised personnel in accordance with the
information provided by the manufacturer and
supplier of the attachments. After each instal-
lation, the attachment must be checked for
correct function prior to initial commissioning.
NOTE
The pressure release
procedure is dependent
on the operating devi
ces for controlling the
hydraulic functions
; see the chapter entitled
"Lifting system ope
rating devices".
2060_003-018
Depressurisation
, multi-lever
– Switch on the key switch.
– Lower the fork carriage to the ground.
– Tilt the lift mast
back to the stop
– Switch off the key switch.
– Actuate the operating lever for controlling
the hydraulic functions repeatedly in the
direction of the arrow as far as the end
position
NOTE
The number of o
perating levers shown may
differfromth
e truck’s equipment.
55
048011501 EN - 12/2015 167
