Operation 5
Workingwithattachments

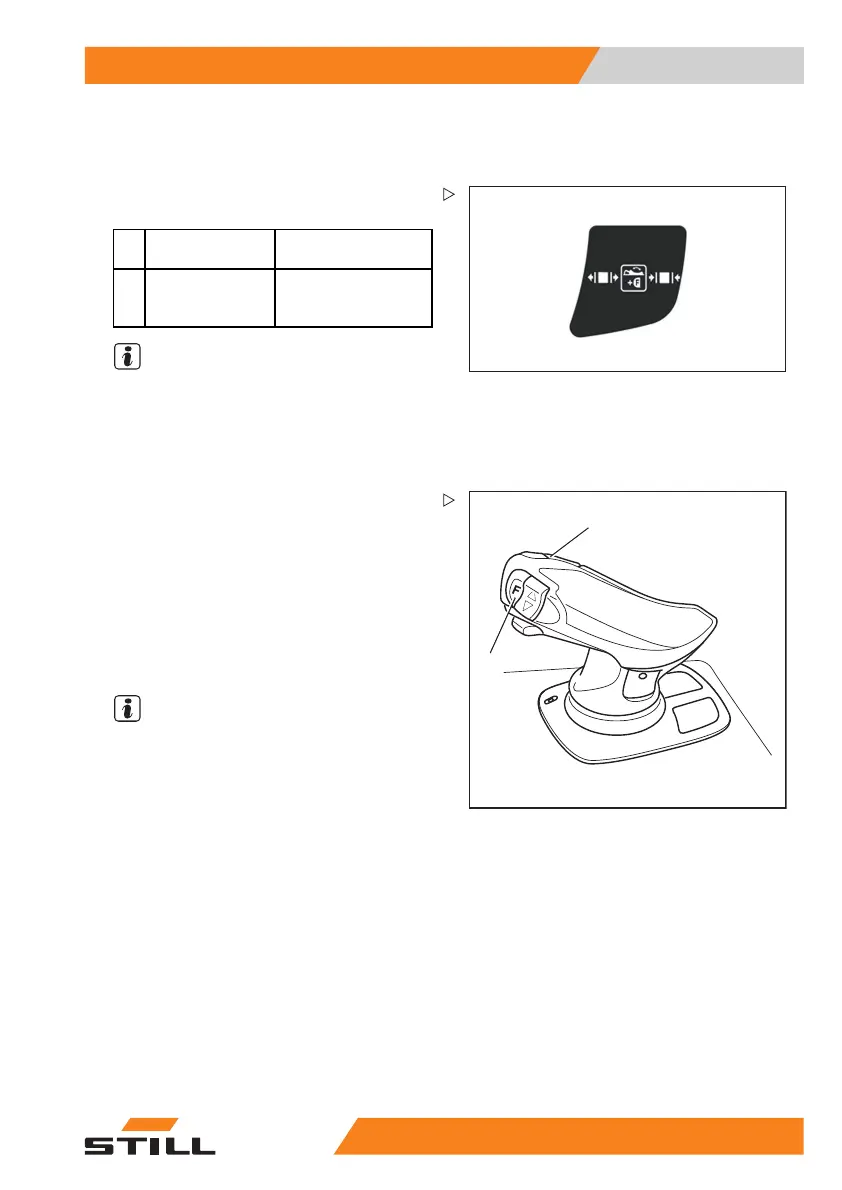

Controlling attachments using the
joystick 4Plus and the 5th function
6210_003-096
1
– Note the following attachment functions and
pictograms.
Operating
device
Function of the
attachment
1
Horizontal
rocker button
+ shift button "F"
Release/open clamp
NOTE
The 5th hydraulic function can be used to
control an attachment. The pictograms on
the joystick 4Plus show which attachment
functions can be controlled using the 5th
function.
2
1
6210_003-086
For attachments that are controlled using
the 5th hydraulic function, the procedures for
operation are as follows:
– Press and hold shift ke
y"F"(1)onthe
joystick 4Plus.
– Simultaneously actuate the horizontal
rocker switch (2) in the direction shown in
the pictogram so that the attachment moves
accordingly.
NOTE
The pictograms on th
e joystick 4Plus are
attached according
to the attachments fitted to
this truck at the fac
tory. If an attachment with
other functions is fi
tted, the pictograms must
be checked for the co
rrect representation and
changed if necessar
y.
– Contact the authorised service centre if
required.
