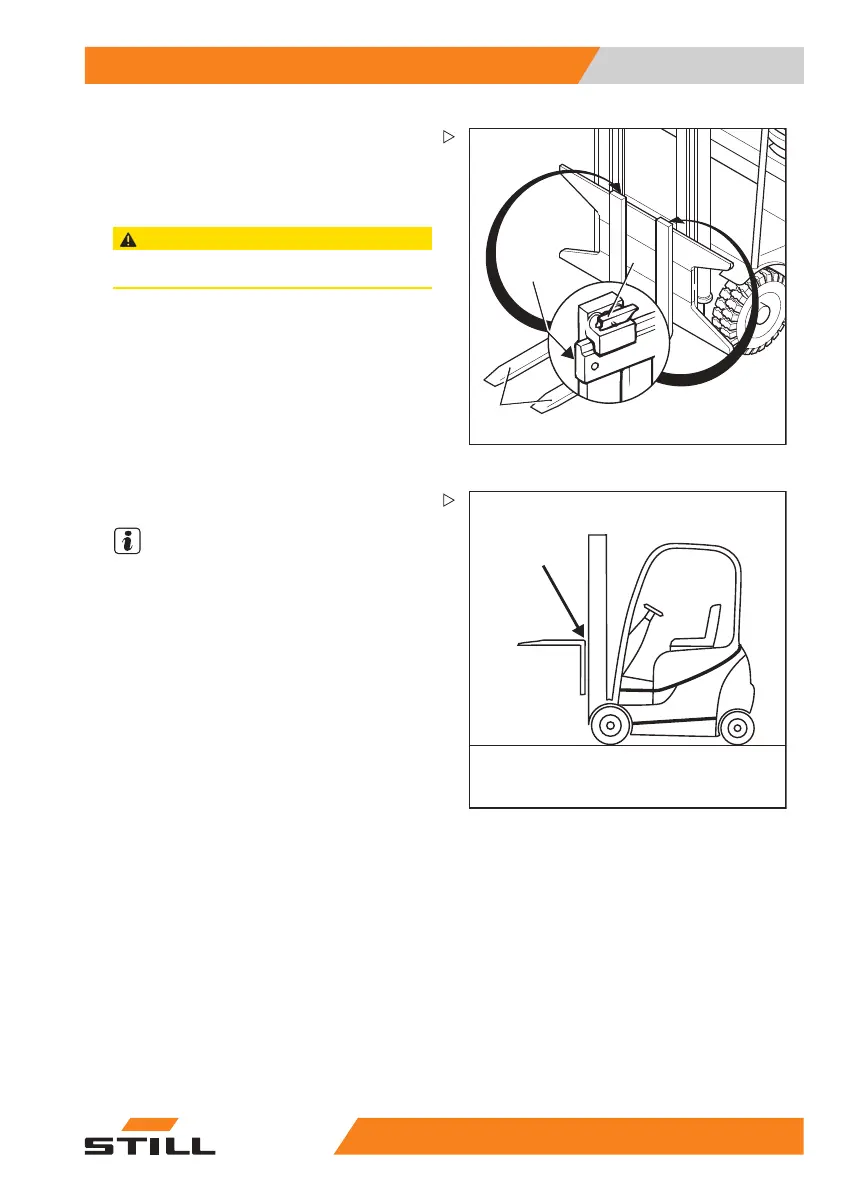

Still RX50-13 - Checking Fork Arms; Checking the Reversible Fork Arms

Maintenance 6
1000-hour maintenance / Annual mai
ntenance
6210_842-002
1
2
3
Checking fork arms
– Inspect the fork arms (1) for any visible
deformation. The wear must not amount to
more than 10 % of the original thickness.
CAUTION
Worn fork arms should always be replaced in pairs.
– Check the securing mechanism (3) for
proper operation.
– The locking screw (2) that prevents dislodg-
ing must be present.
6210_842-003
1
Checking the reversible fork arms
NOTE
Thischeckiso
nly required for reversible fork
arms (variant
).
– Check the outside of the fork bend (1) for
cracks. Contact your service centre.
