Still RX50-13 - Clamp Locking Mechanism (Variant)

Operation 5
Workingwithattachments
6210_003-035
10 11
14
12
15
17
18
13
16

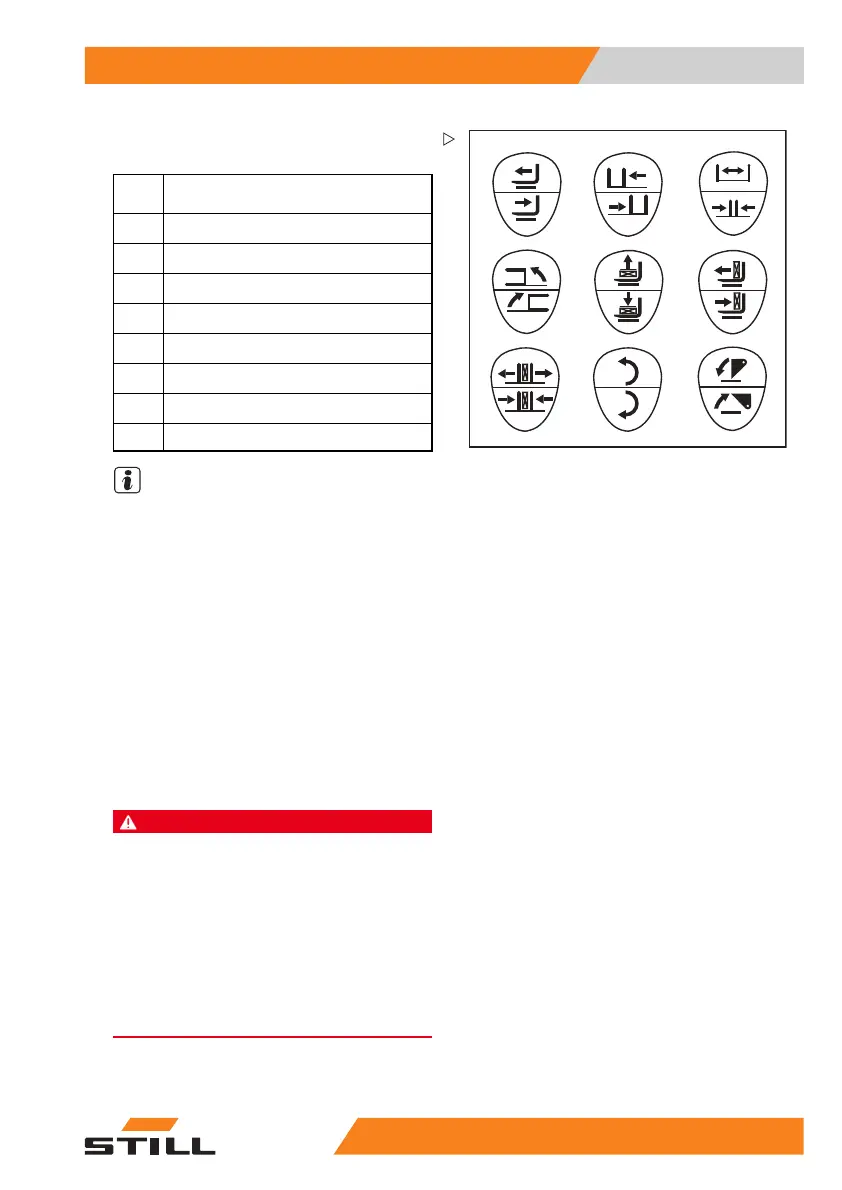

– Note the following attachment functions and
pictograms.
10
Move side shift frame or fork for-
wards/backwards
11
Move sideshift to the left/ri
ght
12
Adjust fork arms: open/clo
se
13
Swivel lift mast or fork to
the left/right
14
Release/clamp load retai
ner
15
Push off/pull in load
16
Open/close clamps
17
Turn to the left/right
18
Tip shovel over/tip shovel back
NOTE
The pictograms shown correspond to the
attachments fitted to this truck at the factory. If
an attachment with other functions is fitted, the
pictograms must be checked for the correct
representation and changed if necessary.
– Contact the authorised service centre if
required.
Clamp locking mechanism (variant)
This truck can be fitted with a clamp locking
mechanism as a variant. This prevents the
clamp from opening unintentionally if the
operating function is inadvertently triggered.
DANGER
There is a risk of fatal injury from falling loads if the
correct function of the clamp locking mechanism is
not guaranteed!
If other attachments are used on this truck in addi-
tion to the clamp, make sure that the clamp locking
mechanism function is reassigned to the corre-
sponding operating device every time the clamp is
reassembled; see the chapter entitled "Fitting at-
tachments".
– Make sure that the additional clamp locking
mechanism function is available.
55
048011501 EN - 12/2015 191
