Still RX50-13 - Connecting the Battery Male Connector; Shelf and Cup Holder

Operation 5
Commissioning
6327_600-001
1

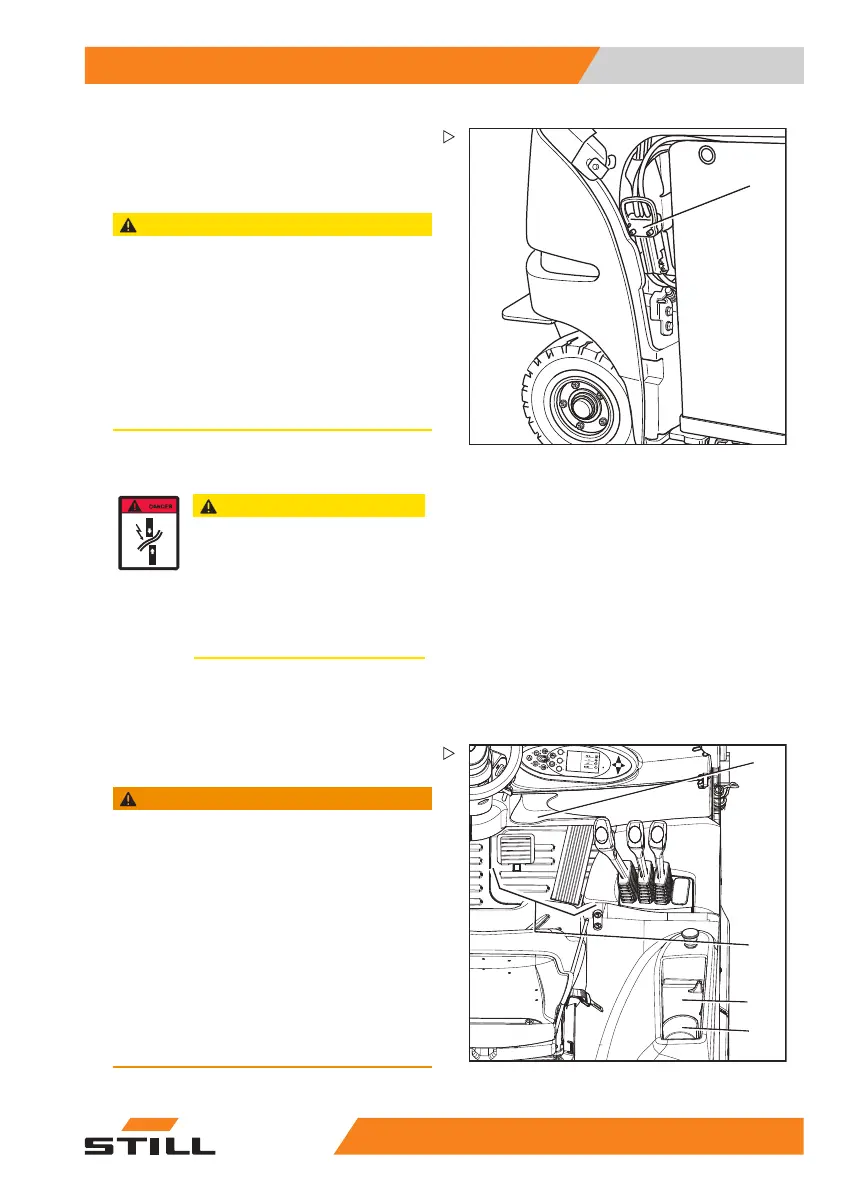

Connecting the battery male connec-
tor
– Open the battery door.
CAUTION
Risk of component damage!
If you connect the battery male connector with the
key switch switched on (under load), an arc will
be produced. This can lead to corrosion at the
contacts, which considerably shortens their service
life.
– Do not connect the battery male connector with
the key switch switched on.
– Make sure that the key switch is switched off
before connecting the battery male connector.
– Insert the battery male connector (1) fully
into the plug connection on the truck.
CAUTION
There is a risk of short circuit if the
cables are damaged.
Do not crush the battery cable when
closing the battery cover.
– Ensure that the battery cable does
not come into contact with the
battery cover.
– Close the battery door.
4
5060_003-165
1
2
4
3
Shelf and cup holder
WARNING
Objects may fall into the footwell and obstruct the
pedals — there is risk of accident!
Objects to be stored must be of the correct size so
they do not fall from the shelves (1, 2) or out of the
cup holder (3). Objects that fall into the footwell
during travel as a result of steering or braking can
slip between the pedals (4) and stop them working
correctly. The truck may subsequently not be able
to be braked when necessary.
– Bottles of 1 l or smaller may be stored in the cup
holder.
– Make sure that stored objects cannot fall from
the shelves when the truck is started up, steered
and braked.
