Technical data 7

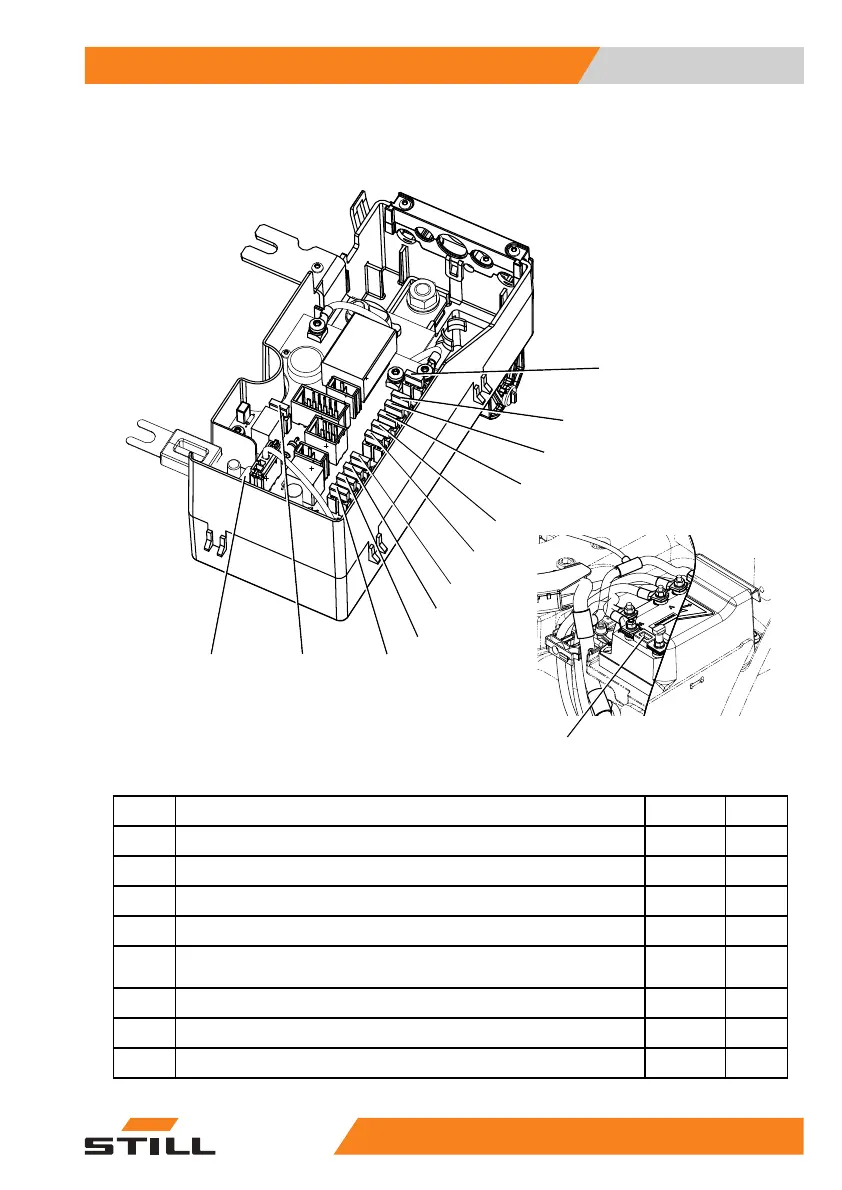

Fuse assignment
Fuse assignment
1
2
3
4
5
6
7
8
9
10
13
11
12
5060_003-139_V2
1
Electric
parking brake
F21 30 A
2
CAN power port (CPP) 1 — standard
F13 30 A
3
CAN power port (CPP) 2 — lighting
F18 20 A
4
12 V voltage transformer supply
F14 10 A
5
Enabl
e hydraulics multi-lever
F19 10 A
6
Switch lock, display and operating unit, main control unit (MCU),
diagnostic connector
F11 10 A
7
Proportional technology
F17 10 A
8
5th
hydraulic function
F16 10 A
9
Not assigned
F15 10 A
55
048011501 EN - 12/2015 351
