Still RX50-13 - Controlling Attachments Using the Four-Way Mini-Lever and the 5 Th Function

5 Operation
Working with attachments
5060_003-119
4
1
2
5
3
E
F
5060_003-120_V2
E
F

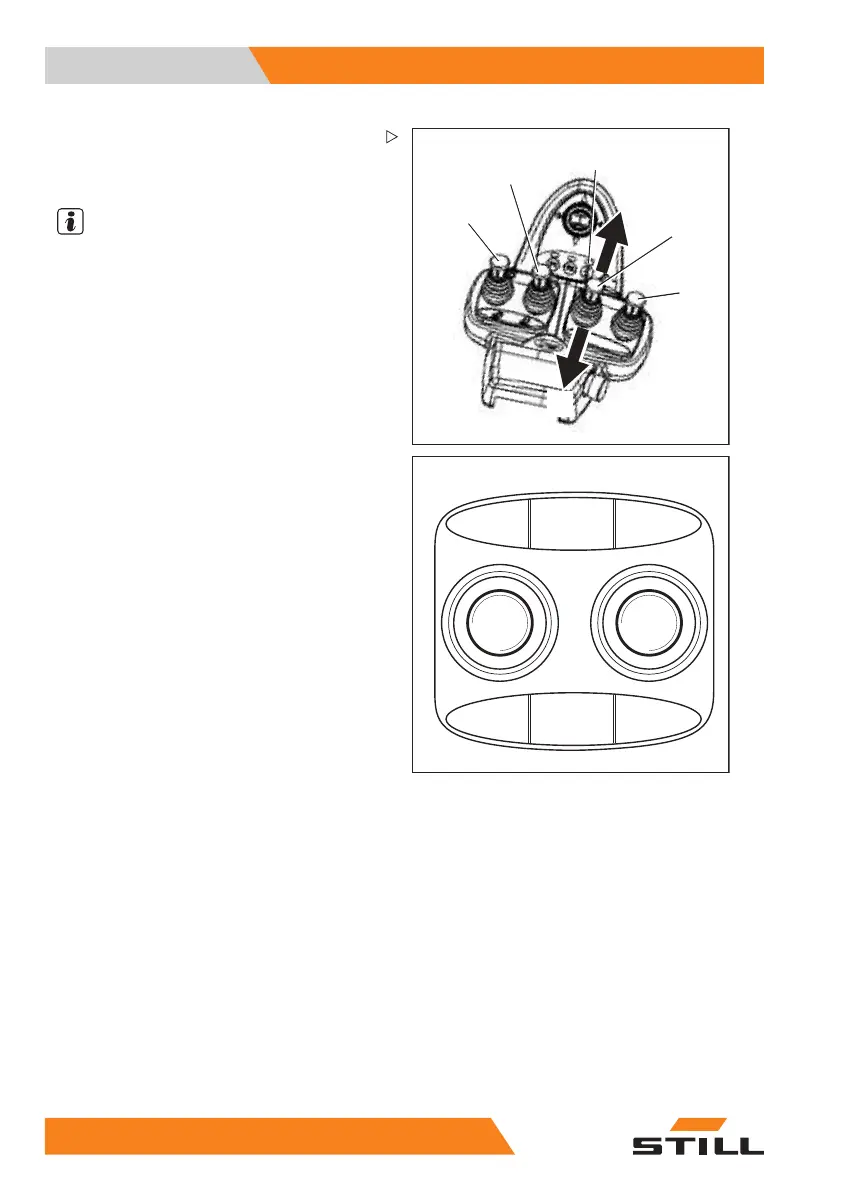

Controlling attachments using the
four-way mini-lever and the 5th
function
NOTE
Operating levers (1) to (4) are used to control
4 hydraulic functions. The designation "5th
function" refers to the fact that the function
change-over uses the "5th function" function
key (5), which then allows the 5th hydraulic
function to be controlled using the operating
lever (3).
The pictograms on the operating levers show
the respective functions that are activated by
these levers.
The meanings are as fol
lows:
– Actuate the "5th function" function key (5)
and move operating lever (3) towards (E).
The attachment moves in accordance with the
pictogram in position (E).
– Actuate the "5th fun
ction" function key (5)
and move operating l
ever (3) towards (F).
The attachment moves in accordance with the
pictogram in position (F).
18
4 55048011501 EN - 12/2015
