Still RX50-13 - Double Mini-Lever

Overviews 4
Operating devices and display elem
ents

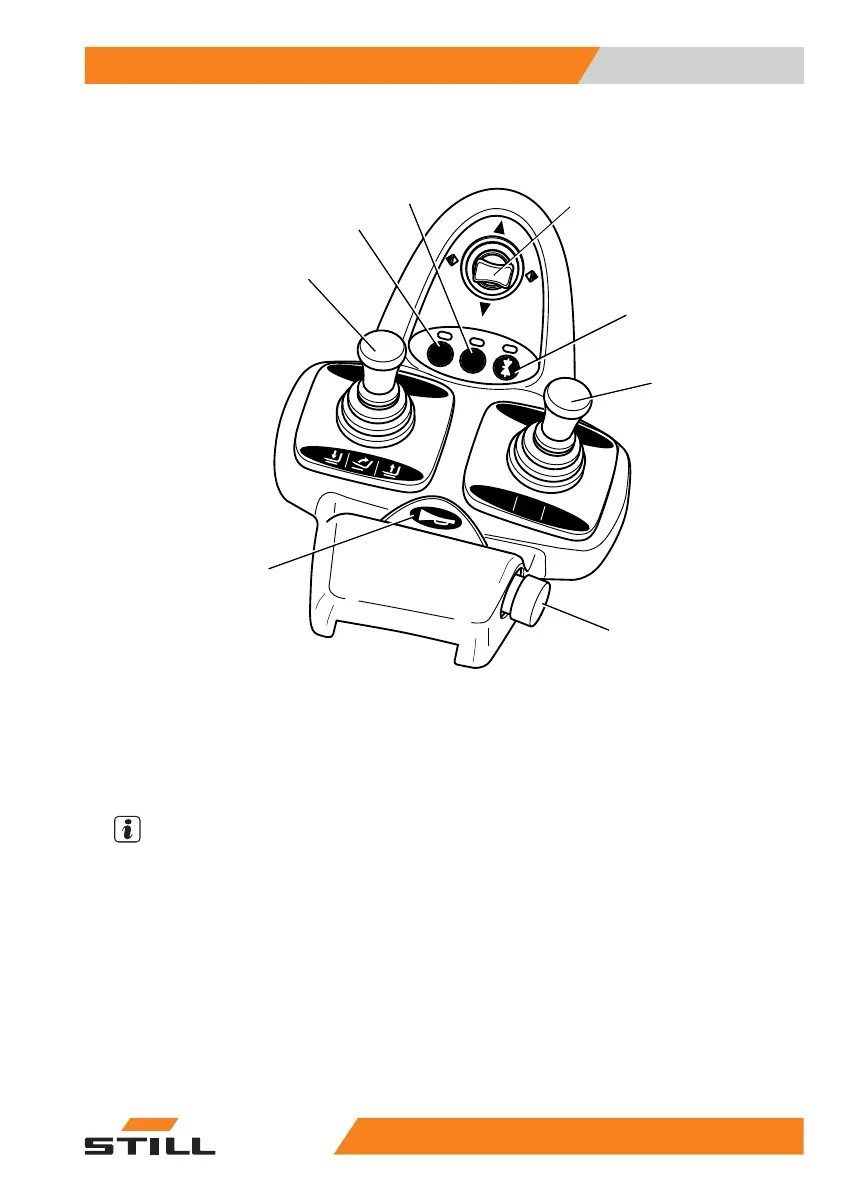

Double mini-lever
F1
F2
7312_003-002
1
2
3
4
5
6
7
8
1 "Lift mast" 360° lever
2 Function key F1
3 Function key F2
4 "Drive direction / turn indicator" cross lever
5 Function key "5th function"
6 "Attachments" cross lever
7 Emergency stop switch
8 Signal horn button
NOTE
Depending on the specification, various
electric attachment parts can be controlled
via function keys (2) and (3). Changes must
only be made by the authorised service centre.
