Still RX50-13 - Controlling Attachments Using the Double Mini-Lever and the 5 Th Function

5 Operation
Working with attachments
7312_003-112
1
2
E
F
7312_003-113_V2
EF

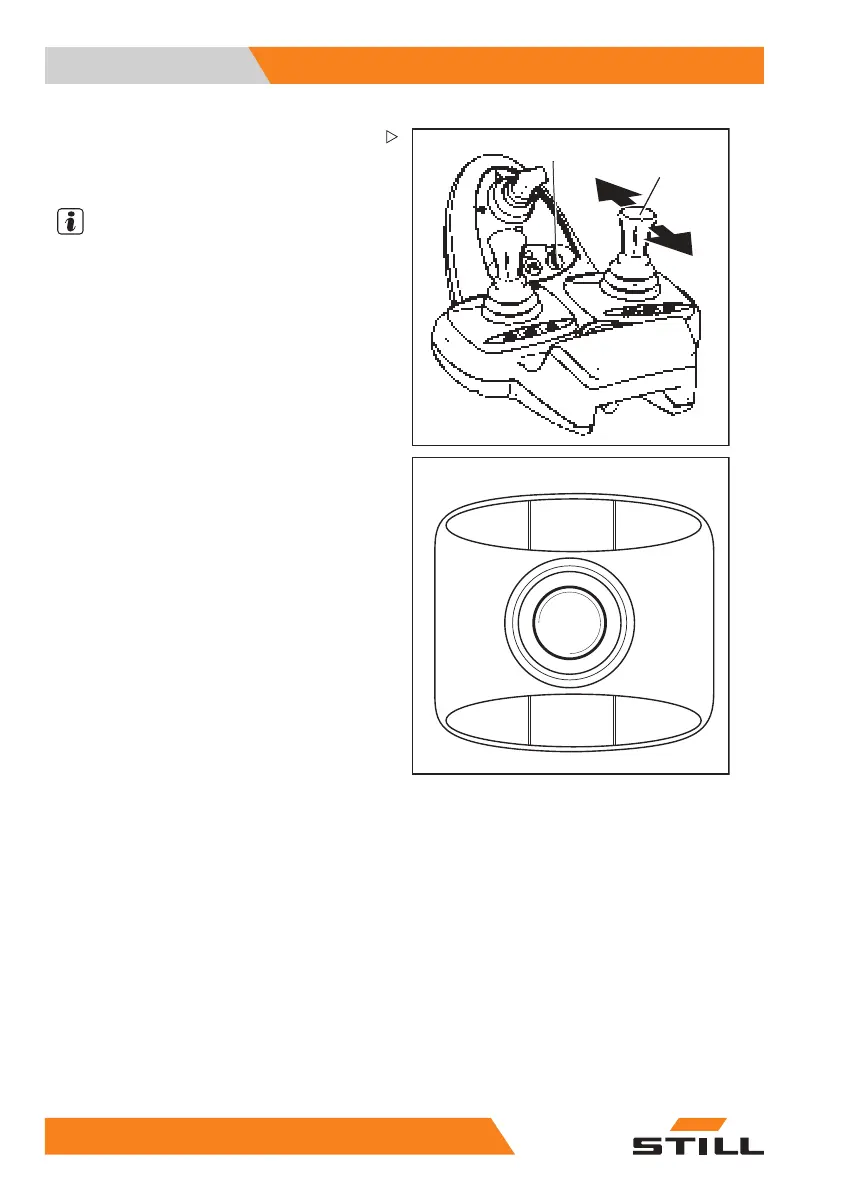

Controlling attachments using
the double mini-lever and the 5th
function
NOTE
The "lift mast" 360° lever and the "attach-
ments" cross lever control four hydraulic func-
tions. The "5th function" designation refers
to the fact that switching functions using the
"5th function" function key (1) control the 5th
hydraulic function via the cross lever.
The pictograms on the "attachments" cross
lever show the respective functions that are
activated by this lever.
This essentially invo
lves the following:
– Actuate the "5th function"(1) function key
and move the "attachments"(2)cross lever
in the direction of arrow (E).
The attachment moves in accordance with the
pictogram in position (E).
– Actuate the "5th fun
ction" function key (1)
and move the "attach
ments"(2) cross lever
in the direction of t
he arrow (F).
The attachment moves in accordance with the
pictogram in position (F).
