Maintenance
Checking the hydraulic oil level
CAUTION
Hydraulic oils are hazardous to your health and are
under pressure during operation.
– Observe the safety regulations in the chapter
"Hydraulic fluid".
– Park the truck securely.
– Remove the left bottom plate.
CAUTION
The maximum oil volume is dependent on the
height of the attached lift mast.
The filling quantities vary by 6 l depending on
the lift mast version. Always observe the filling
quantities for the height of the lift mast, see the
chapter "Maintenance data table".
– For lift masts up to 2100 mm in height, the oil
level must be within the lower mark (2).
– For lift masts over 2100 mm in height, the oil level
must be within the upper mark (3).
– The corresponding minimum marking must be
exceeded.
1
5060_003-065_V3
1
2
3

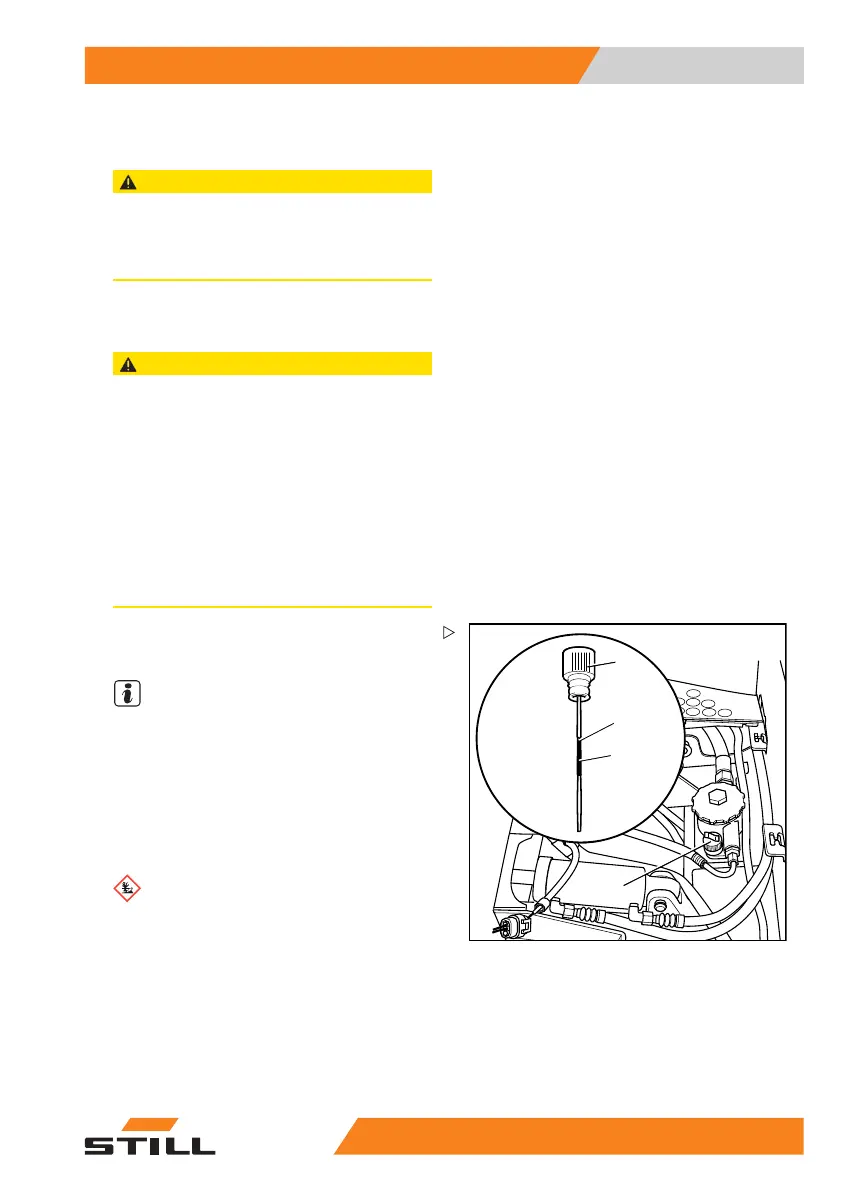

– Unscrew breather filter with oil dipstick (1).
– Check the oil level.
NOTE
The oil level must lie within the mark (2) or wi-
thin the mark (3) on the dipstick, depending on
the height of the lift mast. The corresponding
minimum marking must be exceeded.
– If necessary, pour hydraulic oil of the
correct specification as specified in the
maintenance data table into the filler neck.
ENVIRONMENT NOTE
•
Carefully collect up any spilled oil and
dispose of it in an environmentally friendly
manner.
– Screw in the breather filter with oil dipstick.
– Install the left bottom plate.
