Still RX50-13 - Controlling the Lifting System with the Fingertip Console

5 Operation
Lifting
F1
F1
F2
F2
6321_003-011
1
2
1
2
6210_003-043
6210_713-002_V2
2
1

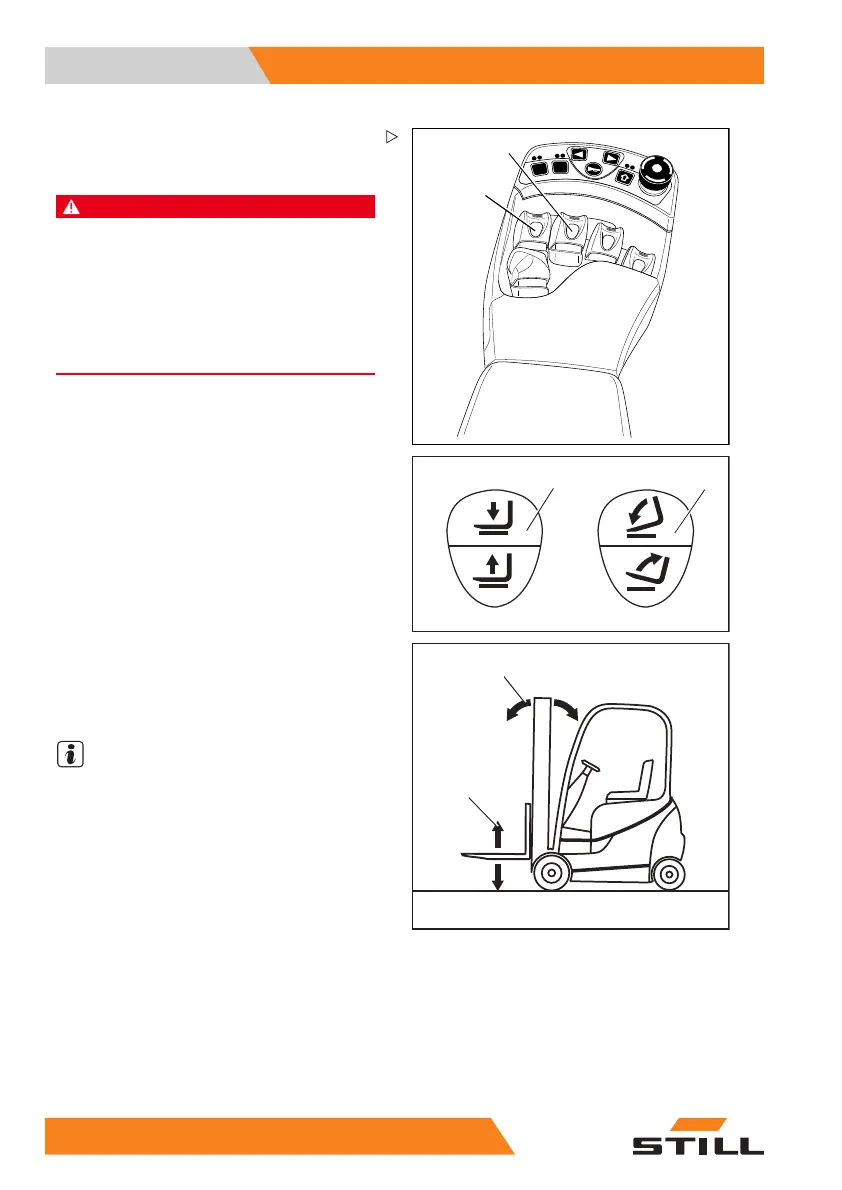

Controlling the lifting system with the
fingertip console
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Only operate the lifting system from the driver’s
seat.
Lifting/lowering the fork carriage
To lift fork carriage:
– Pull the "lift/lower" operating lever (1)
backwards.
To lower fork carriage:
– Push the "lift/lower" operating lever (1)
forwards.
Tilting the lift mast
Totilttheliftmastforwards:
– Push the "tilt" operating lever (2) forwards.
To tilt the lift mast backwards:
– Pull the "tilt" operating lever (2) backwards.
NOTE
The symbols on the operating levers show the
direction of movement of the lift mast or fork
carriage when the operating lever is moved.
14
0 55048011501 EN - 12/2015
