Operation 5
Working with loads
5051_003-007
3
5230
500
2
880 Kg
1

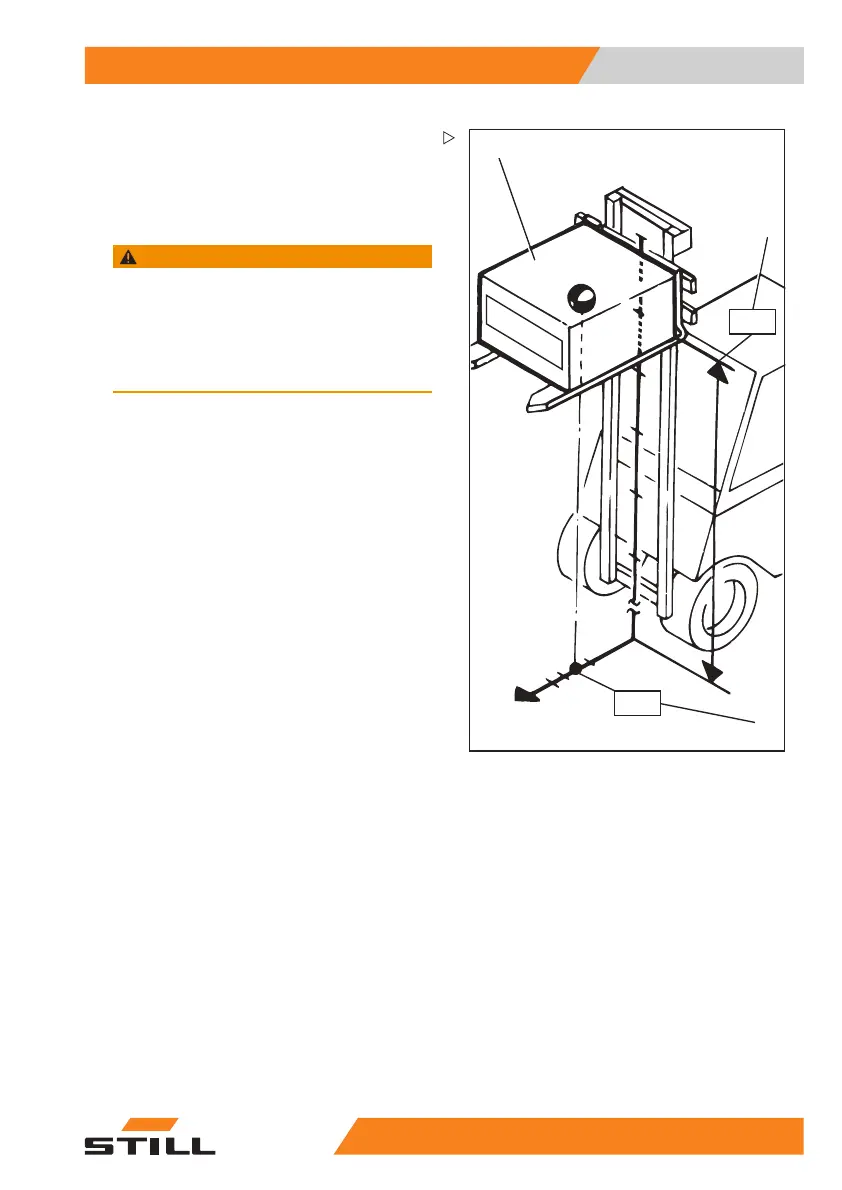

Example
Weight of load to be lifted: 880 kg (3)
Load distance from fork back: 5
00 mm (1)
Permitted lift height: 5230 mm (2)
WARNING
Risk of accident from the truck losing stability!
The permissible load of the attachments (variant)
and the reduced lifting capacity of the combination
of truck and attachment must not be exceeded.
– Observe the special capacity rating plate infor-
mation shown on the truck and the attachment.
Load measurement (variant)
Description
Knowing the weight of the load to be trans-
ported gives the driver greater security. If
the truck is equipped with the "load measure-
ment" (variant) comfort feature, the weight of
the lifted load can be measured and shown in
the display and operating unit.
Load measurement is possible only when the
truck is at a standstill. Before performing a
load measurement, the load must be raised to
a height of 300-800 mm above the ground.
