Still RX50-13 - Removing;Installing the Bottom Plate for Dual Pedal Operation (Variant)

Maintenance 6
Providing access to maintenance po
ints

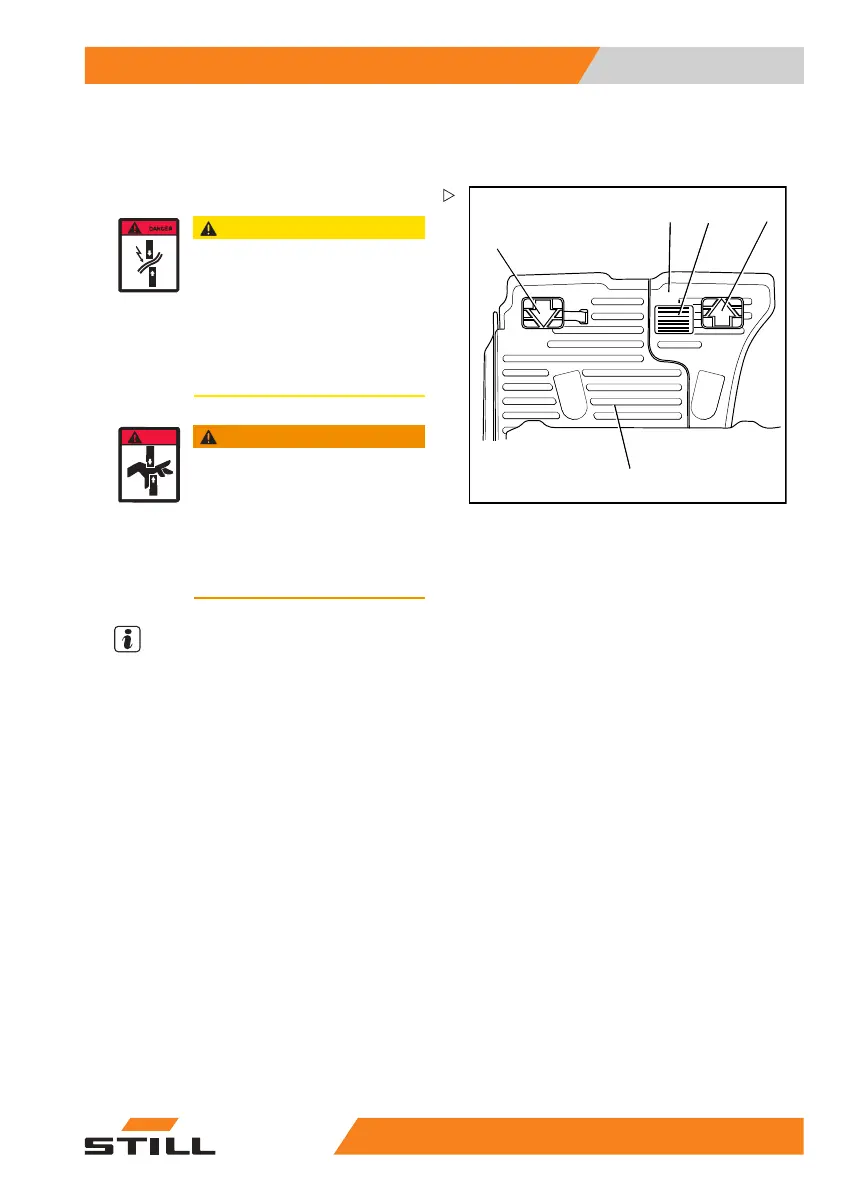

Removing/installing the bottom plate
for dual pedal operation (variant)
5060_003-117
5
1
2
3
4
Removing the right bottom plate
CAUTION
There is a risk of short circuit if the
cables are damaged.
– Check the connecting cable for
damage.
– When removing and reinstalling
the bottom plate, ensure that
the connecting cables are not
damaged.
DANGER
WARNING
When closing the bottom plate,
nothing should come between the
bottom plate and the edge of the
chassis. There is a risk of crushing!
– When closing the bottom plate,
make sure nothing is between the
bottom plate and the edge of the
chassis.
NOTE
The accelerator pedals (3) and (5) are atta-
ched to the left bottom plate and are removed
with it. Due to the design, the right bottom
plate must always be removed first.
– Lift the bottom plate (1) forwards and
carefully guide it upwards over the brake
pedal (2) and the forwards accelerator
pedal (3).
– Remove the bottom plate.
Installing the right bottom plate
– Position the bottom plate.
– Lower the bottom plate, carefully guiding it
downwards over the brake pedal and the
forwards accelerator pedal.
– Close the bottom plate.
Removing the left bottom plate
– Lift up the bottom plate (4).
55
048011501 EN - 12/2015 313
