Still RX50-13 - Controlling Attachments Using Multi-Lever Operation

Operation 5
Workingwithattachments
2060_003-019
1
Controlling attachments using
multi-lever operation

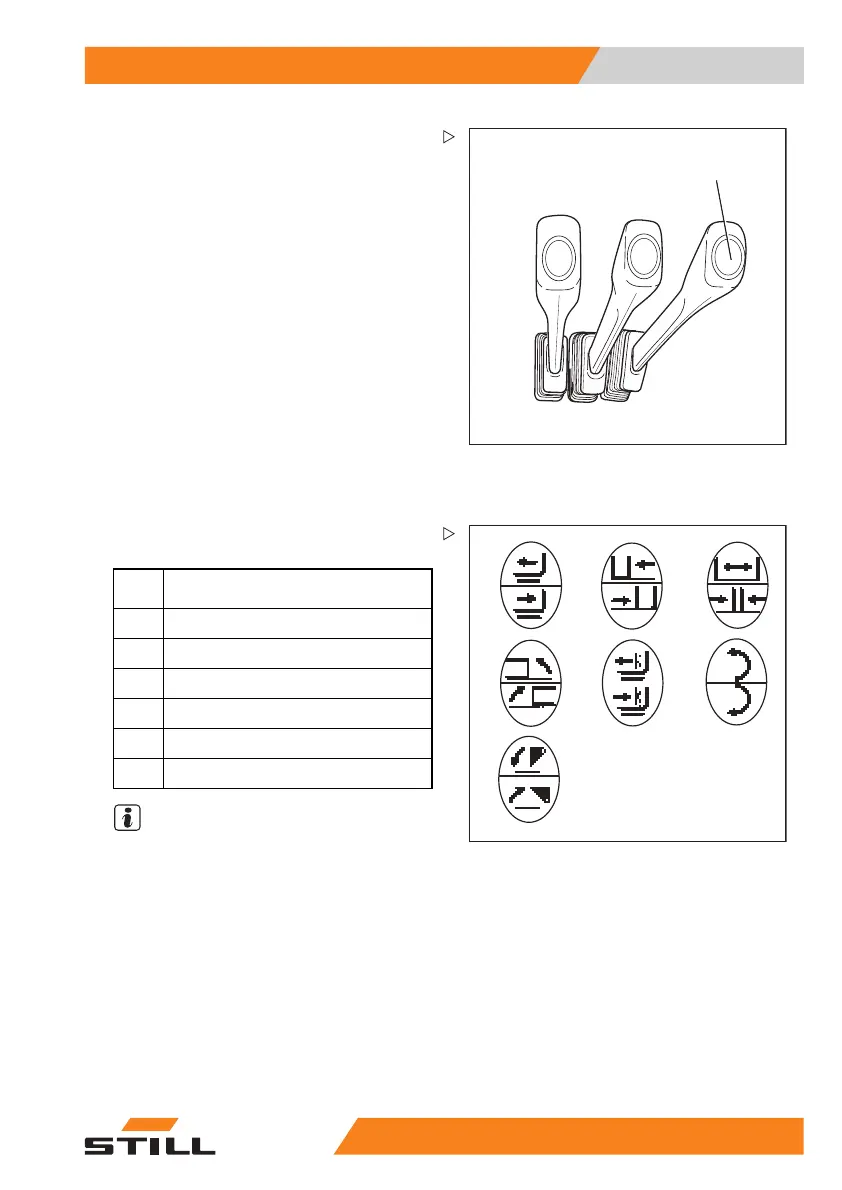

The attachments (variant) are controlled in
this version using the operating lever (1).
The pictograms on the operating lever show
all of the functions that are activated by this
lever.
The meanings are as follow
s:
– Move operating lever (1) forwards.
Theattachmentmovesinthedirectionof
movement shown in the upper part of the
pictogram.
– Move operating lever (1
) backwards.
Theattachmentmovesinthedirectionof
movement shown in the lower part of the
pictogram.
5060_003-166
23
6
4
7
5
8
– Note the following attachment functions and
pictograms.
2
Move side shift frame or fork for-
wards/backwards
3
Move sideshift to the left/right
4
Adjust fork arms: open/close
5
Swivel lift mast or fork to the left/right
6
Push off/pull in lo
ad
7
Turn to the left/right
8
Tip shovel over/tip shovel back
NOTE
The pictograms s
hown correspond to the
attachments fitt
ed to this truck at the factory. If
an attachment w
ith other functions is fitted, the
pictograms mus
t be checked for the correct
representatio
n and changed if necessary.
– Contact the authorised service centre if
required.
