5 Operation
Working with attachments
1
6210_003-085

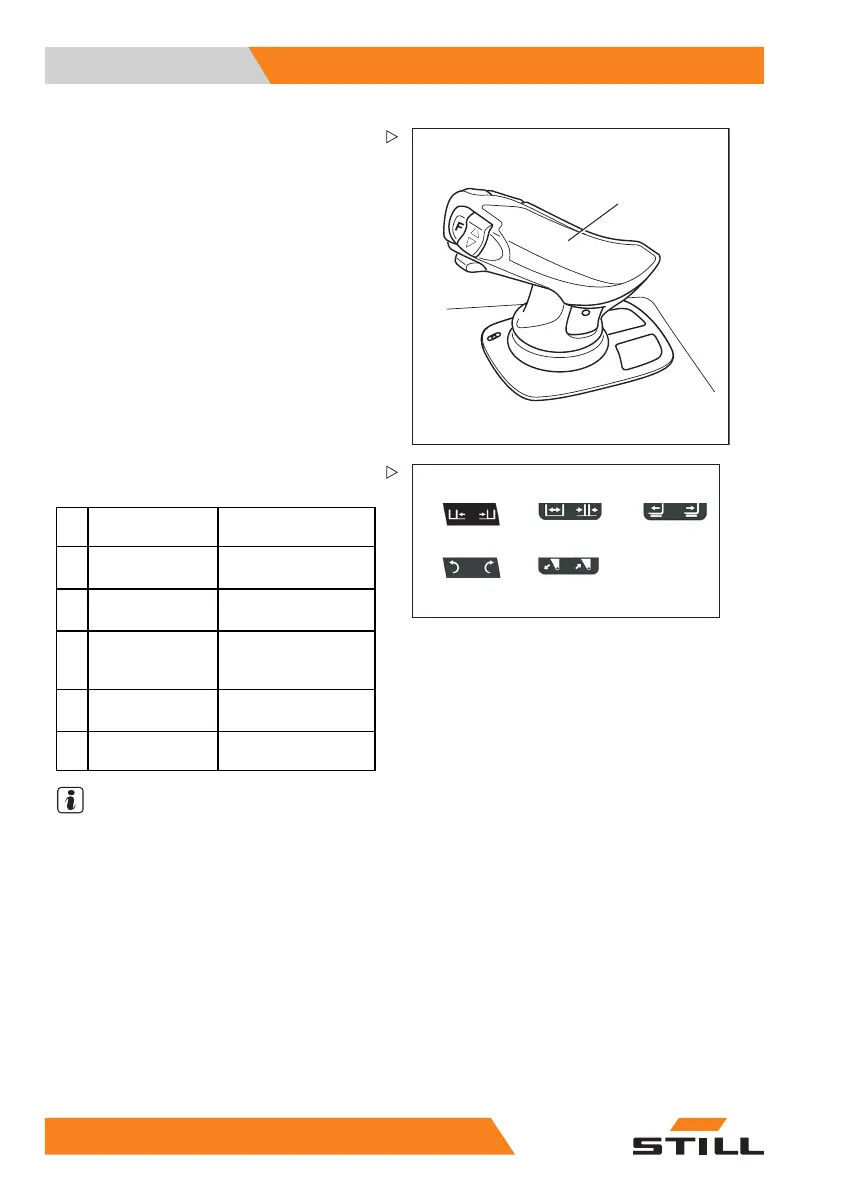

Controlling attachments via the
joystick 4Plus
In this equipment, the attachments (variant)
are controlled via the joystick 4Plus (1).
The pictograms on the decal information
about operation of the joystick 4Plus show
the respective functions that are activated
by the individual operating devices of the
joystick 4Plus.
6210_003-098
1
4
2
5
3
– Note the following
attachment functions and
pictograms.
Operating
device
Function of the
attachment
1
Joystick 4Plus
Move sideshift to the
left/right
2
Joystick 4Plu
sor
slider
Adjust fork arms:
open/close
3 Slider
Move reach frame
or fork carriage
forwards/backwards
4
Joystick 4
Plus or
slider
Rotate attachment
left/right
5
Slider
Tip shovel over/tip
shovel back
NOTE
The pictograms on the joystick 4Plus are
attached according to the attachments fitted to
this truck at the factory. If an attachment with
other functions is fitted, the pictograms must
be checked for the correct representation and
changed if necessary.
–Contac
t the authorised service centre if
requir
ed.
