Still RX50-13 - Controlling Attachments Using the Three-Way Mini-Lever and the 5 Th Function

5 Operation
Working with attachments
5060_003-121
E
F
2
1
3
5060_003-120_V2
E
F

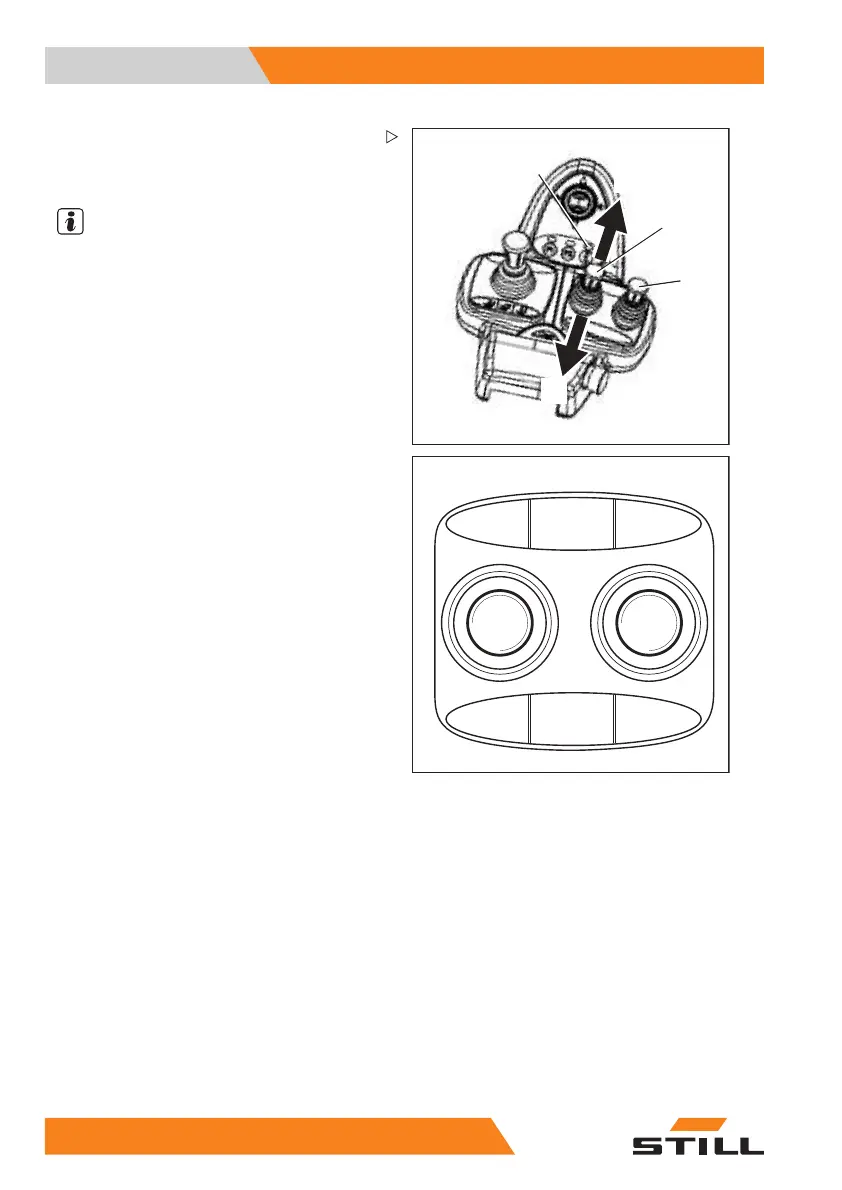

Controlling attachments using the
three-way mini-lever and the 5th
function
NOTE
Four hydraulic functions are controlled using
the "lift mast" 360° lever and operating levers
(1) and (2). The designation "5th function"
refers to the fact that the function change-over
uses the function key (3) , which then allows
the 5th hydraulic function to be controlled with
the operating lever (1).
The pictograms on the operating levers show
the respective functions that are activated by
these levers.
The meanings are as fol
lows:
– Actuate the "5th function" function key (3)
and move operating lever (1) towards (E).
The attachment moves in accordance with the
pictogram in position (E).
– Actuate the "5th fun
ction" function key
(3) and move the oper
ating lever (1) to-
wards(F).
The attachment moves in accordance with the
pictogram in position (F) .
18
0 55048011501 EN - 12/2015
