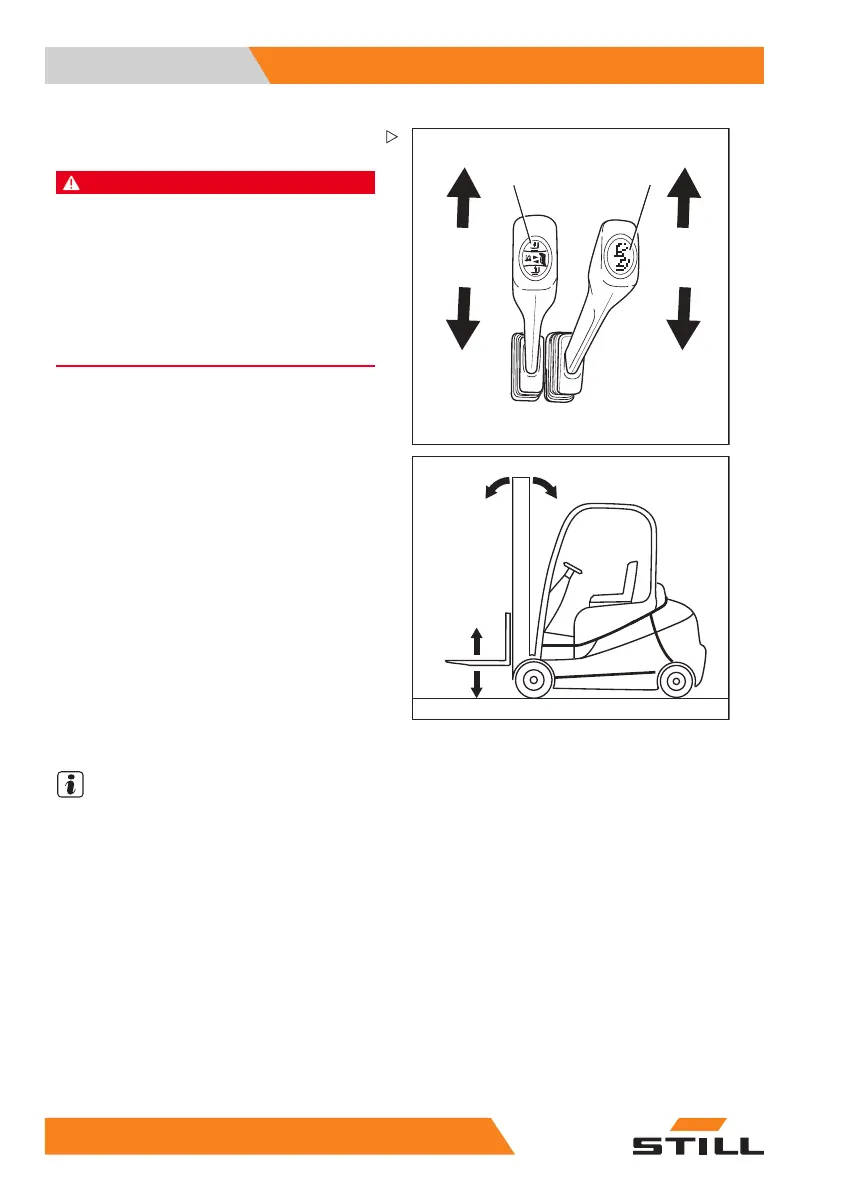

Multi-lever lifting system
DANGER
Reaching or climbing between moving parts of the
truck (e.g. lift mast, sideshifts, working equipment,
load carrying devices etc.) canlead to serious injury
or death and is therefore prohibited.
– Always observe the safety regulations for hand-
ling loads; see ⇒ Chapter "Safety regulations
when handing loads", P. 5-147.
– Only operate the lifting system from the driver’s
seat.
Lifting/lowering the fork carriage
To lift fork carriage:
– Move the "lift-lower" operating lever (1) in
the direction of the arrow (B).
To lower fork carriage:
– Move the "lift-lower" operating lever (1) in
the direction of the arrow (A).
Tilting the lift mast
Totilttheliftmastforwards:
– Move the "tilt" operating lever (2) in the
direction of the arrow (C).
To tilt the lift mast backwards:
– Move the "tilt" operating lever (2) in the
direction of the arrow (D).
NOTE
The symbols on the operating levers show the
direction of movement of the lift mast or fork
carriage when the operating lever is moved.
13
