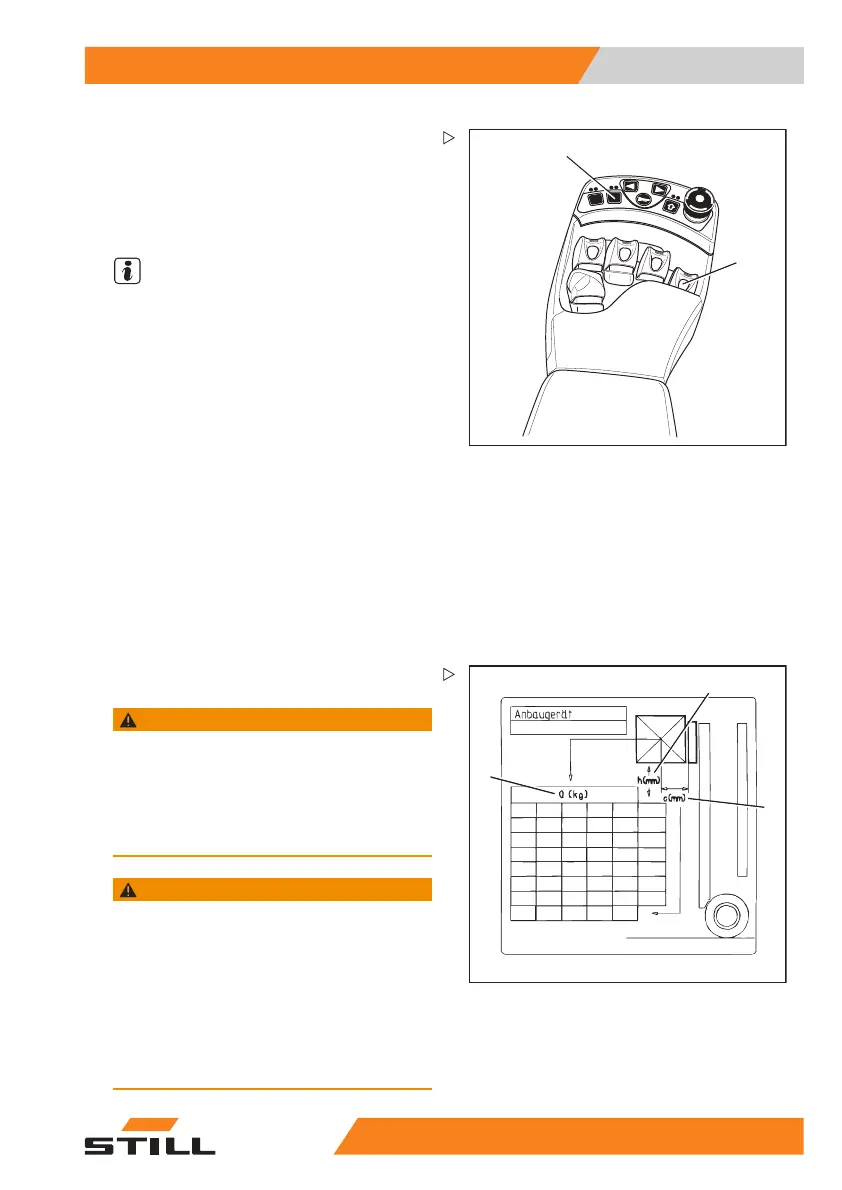

Still RX50-13 - Taking up a Load Using Attachments

Operation 5
Workingwithattachments
6210_003-080
F1
F1
F
2
F
2
1
2
Fingertip
– To release the clamp locking mechanism,
push the operating lever (1) forwards.
TheLEDforbuttonF2(2)lights
up as long as
the clamp locking mechanism is
released.
NOTE
The hydraulic function for opening the clamp
is available for one second after the clamp
locking mechanism is released. After one
second, the clamp locking mechanism is
automatically reactivated.
– To open the clamp, push th
e control lever
(1) forwards again.
It is not necessary to release the clamp locking
mechanism in order to close the clamp.
– To close the clamp, pull the control lever (1)
back.
– To operate the clamping attachments; see
the section entitled "Controlling attach-
ments using the fingertip and the 5th func-
tion".
1
2
3
7090_860-002
Taking up a load using attachments
WARNING
Risk of accidents!
Attachments may only be used for their intended
purpose as described in the relevant operating
instructions.
Drivers must be instructed in the handling of the
attachments.
WARNING
Risk of accidents!
Loads may only be picked up and transported with
attachments if they are securely attached. Where
necessary, loads should also be secured against
slipping, rolling, falling over, swinging or tipping
over. Note that any change to the position of the
load’s centre of gravity will affect the stability of the
forklift truck.
Check the capacity ratingplates for the attachments
or combination of attachments.
55
048011501 EN - 12/2015 195
