5 Operation
Working with attachments
– To operate clamping attachments, see the
section entitled "Controlling attachments
using the quadruple mini-lever and the 5th
function".
1
3
2
6210_003-097

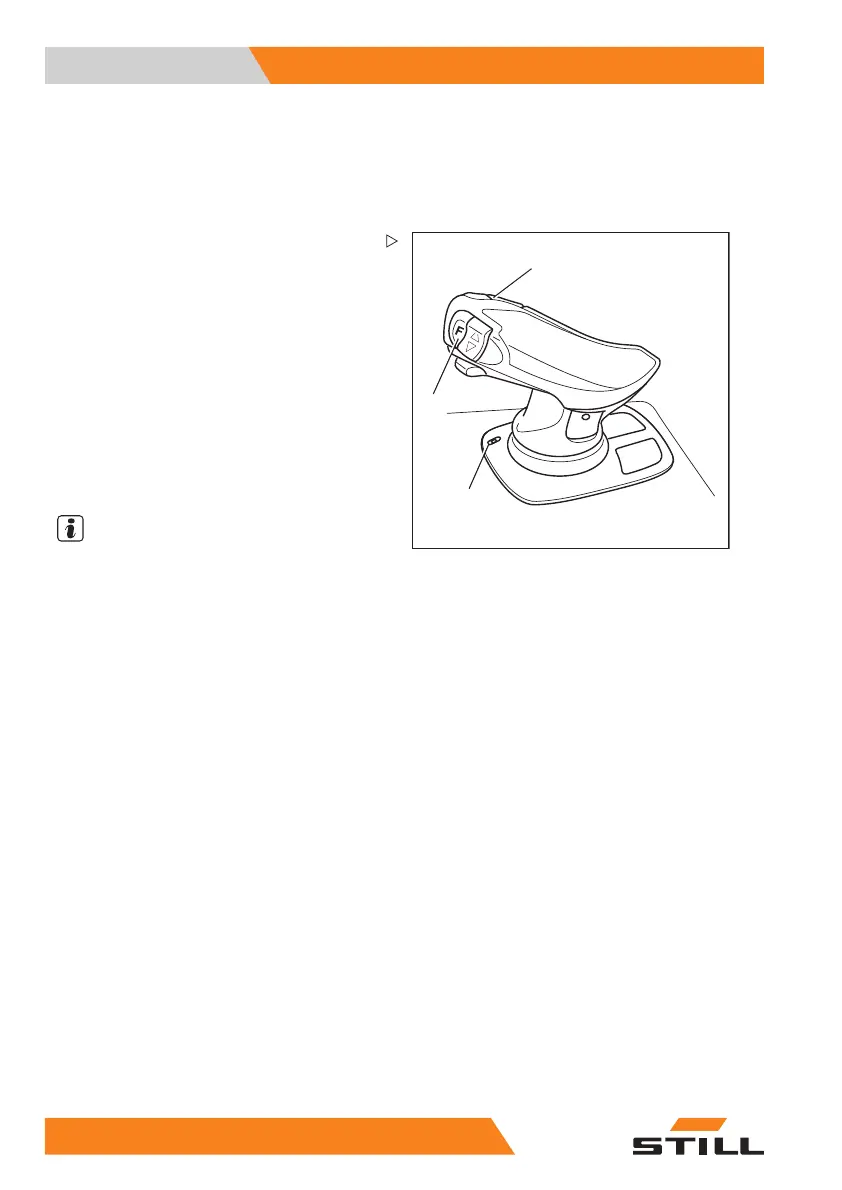

Joystick 4Plus
– To release the clamp locking mechanism,
press and hold shift key "F"(3) and move the
horizontal rocker button (1) to the right.
– Keep shift key "F"(3) press
ed and move
the horizontal rocker butt
on (1) back to the
neutral position.
The LED (2) lights up as long as the clamp
locking mechanism is released.
– To open the clamp, press and hold shift
key "F"(3) and move the horizontal rocker
button (1) to the right.
NOTE
The hydraulic function for opening the clamp
is available for one second after the clamp
locking mechanism is released. After one
second, the clamp locking mechanism is
automatically reactivated.
It is not necessary to release the clamp locking
mechanism in order to close the clamp.
– Toclosetheclamp,pr
ess and hold shift key
F (3) and move the hor
izontal rocker button
(1) to the left.
– To operate the clamping attachments, see
the section entitled "Controlling attach-
ments using the joystick 4Plus and the 5th
function".
19
4 55048011501 EN - 12/2015
