4 Overviews
Operating devices and display elem
ents

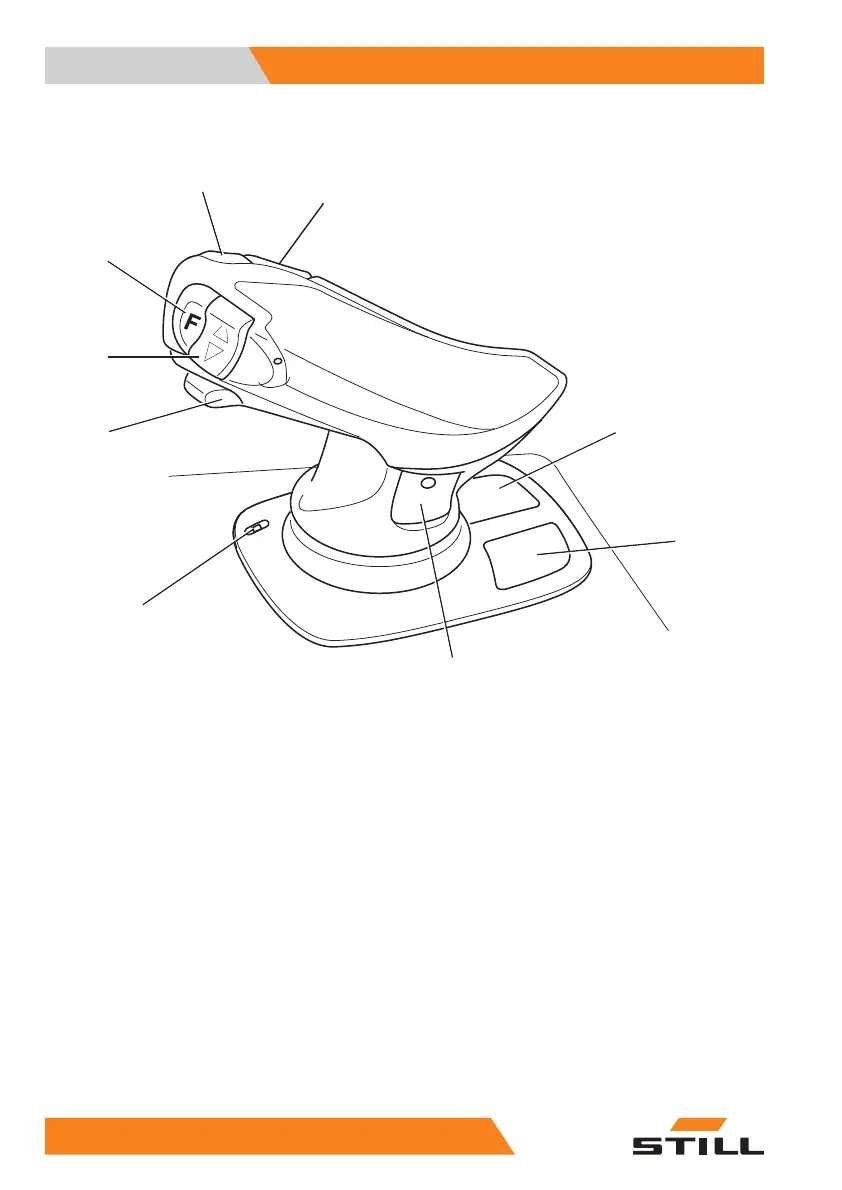

Joystick 4Plus
1
2
3
4
5
9
8
7
6
6210_003-087
1 Horizontal rocker button for "3rd hydraulic
function", tilt the lift mast
2 Pictograms for the basic hydraulic functions
3 Pictograms forthe 5th hydraulic function and
the clamp locking mechanism (variant)
4 Pictograms for the 3rd & 4th hydraulic
functions
5 LED for clamp locking mechanism (variant)
6 Slider for the "4th hydraulic function", e.g.
reach frame forwards/backwards
7 Vertical rocker button for the "drive direction"
8Shiftkey"F"
9 Signal horn button
60
55048011501 EN - 12/2015
