Operation 5
Lifting
5060_003-106
1
C
D
2
A
B
7312_003-114
7312_003-022_V2
DC
B
A

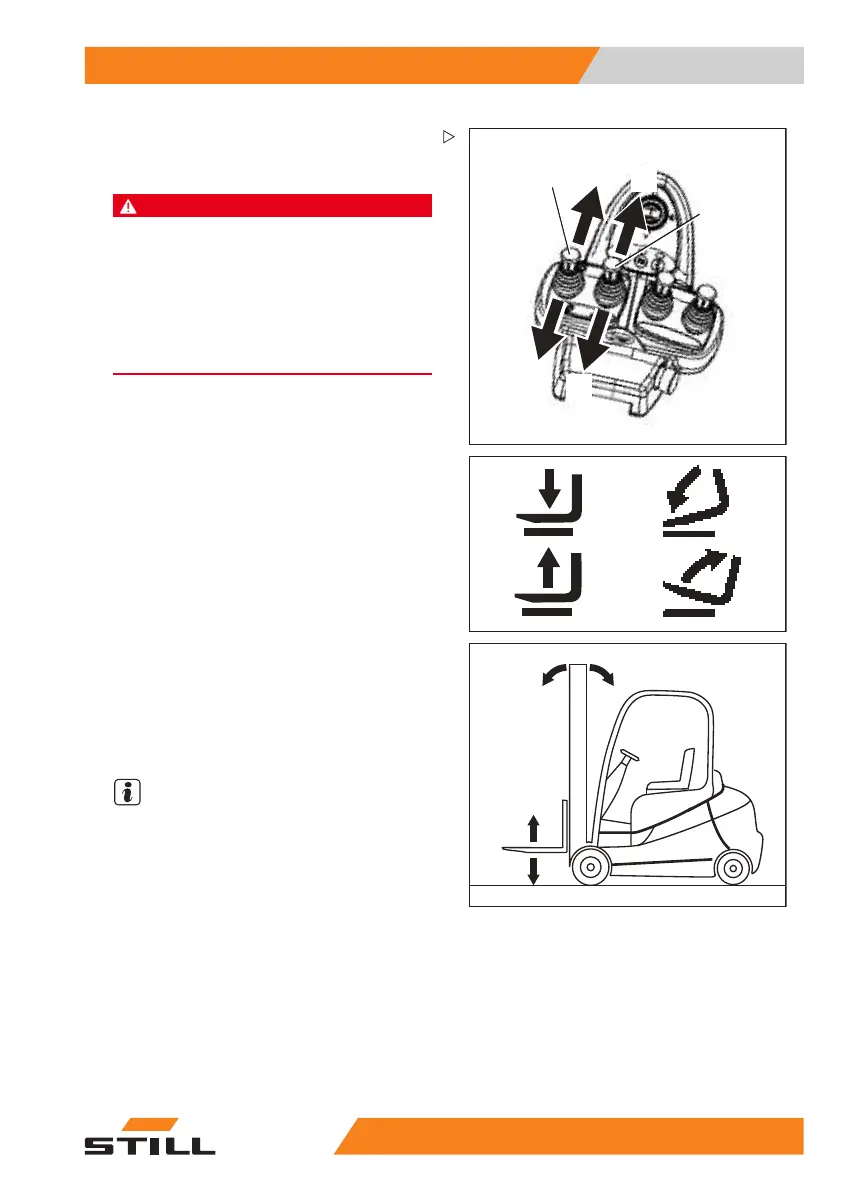

Controlling the lifting system using a
quadruple mini-lever
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Only operate the lifting system from the driver’s
seat.
Tilting the lift mast
To tilt the lift mast forwards:
– Move the "lift mast" operating lever (1) in the
direction of the arrow (A).
To tilt the lift mast backwards:
– Move the "lift mast" operating lever (1) in the
direction of the arrow (B).
Lifting/lowering the fork carriage
To lift fork carriage:
– Move the "lift-lower" operating lever (2) in
the direction of arrow (D).
To lower fork carriage:
– Move the "lift-lower" operating lever (2) in
the direction of arrow (C).
NOTE
The symbols on the operating levers show the
direction of movement of the lift mast or fork
carriage when the operating lever is moved.
55
048011501 EN - 12/2015 137
