Operation 5
Handling the battery
4
3
2
1
5060_003-148

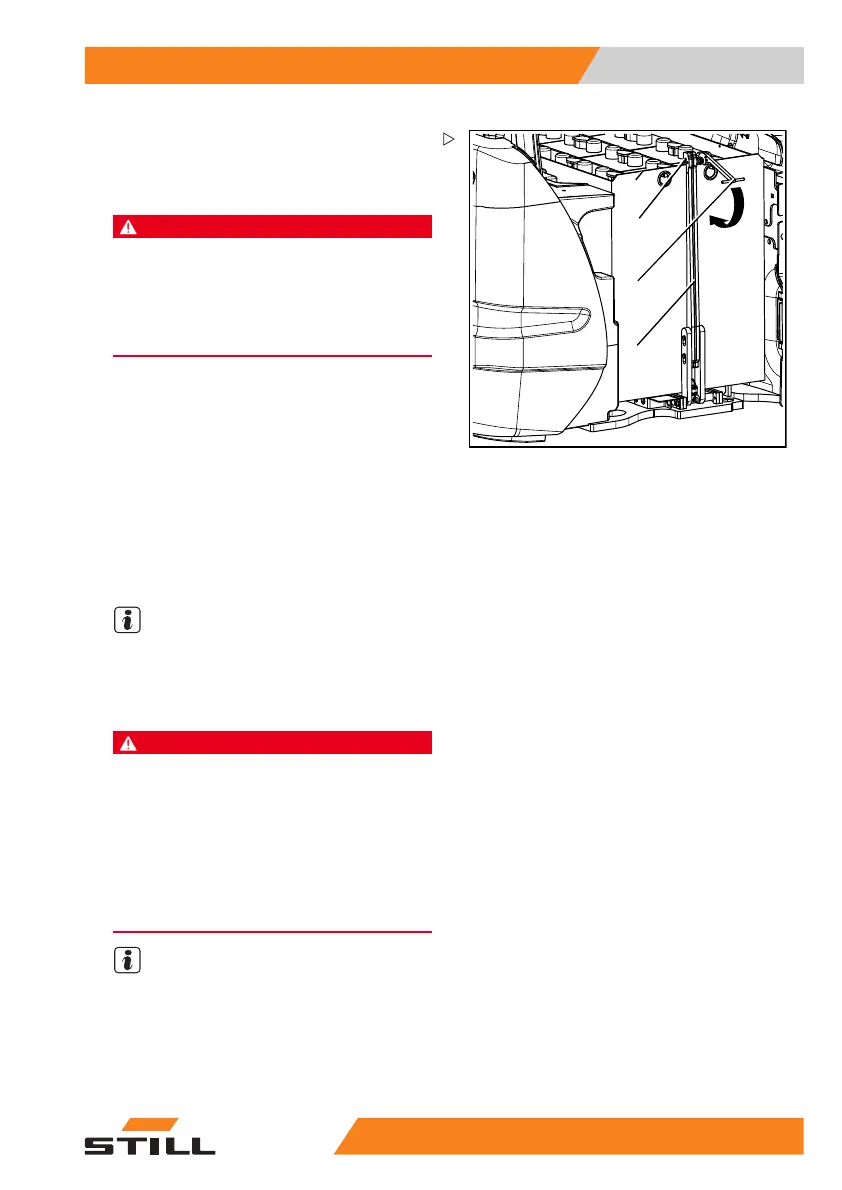

– Grip the lock (1) at the handle (2) and lower
it vertically, ensuring that the lock catch (3)
engages behind the edge of the battery tray
(4).
DANGER
If the battery is not locked correctly, the battery
can slide out of the truck, with potentially fatal
consequences!
– Ensure that the lock is fully lowered and that
the lock catch engages behind the edge of the
battery tray.
– Connect the battery male connector.
– Close the battery door.
– Close the battery hood.
Battery replacem
ent using an
external roller c
hannel
Preparing the ex
ternal roller channel for
battery replac
ement
NOTE
Trucks with an integral roller channel allow
the battery to be changed using a hand pallet
truck which is equipped with an external roller
channel.
DANGER
Risk of crushing due to the hand pallet truck tipping
over or rolling away!
– The load capacity of the hand pallet truck must
correspond to at least the battery weight (see
battery identification plate).
– The hand pallet truck must be equipped with a
parking brake.
– Observe the operating instructions for the hand
pallet truck.
NOTE
The external roller channel is designed for
transporting a variety of widths of batteries.
Before using the external roller channel,
the battery type to be transported should be
determined and the roller channel prepared
accordingly.
