5 Operation
Handling the battery
5060_003-140
1
2
3
4
5
4
3
2
1
4
3
2
1
B
C
A

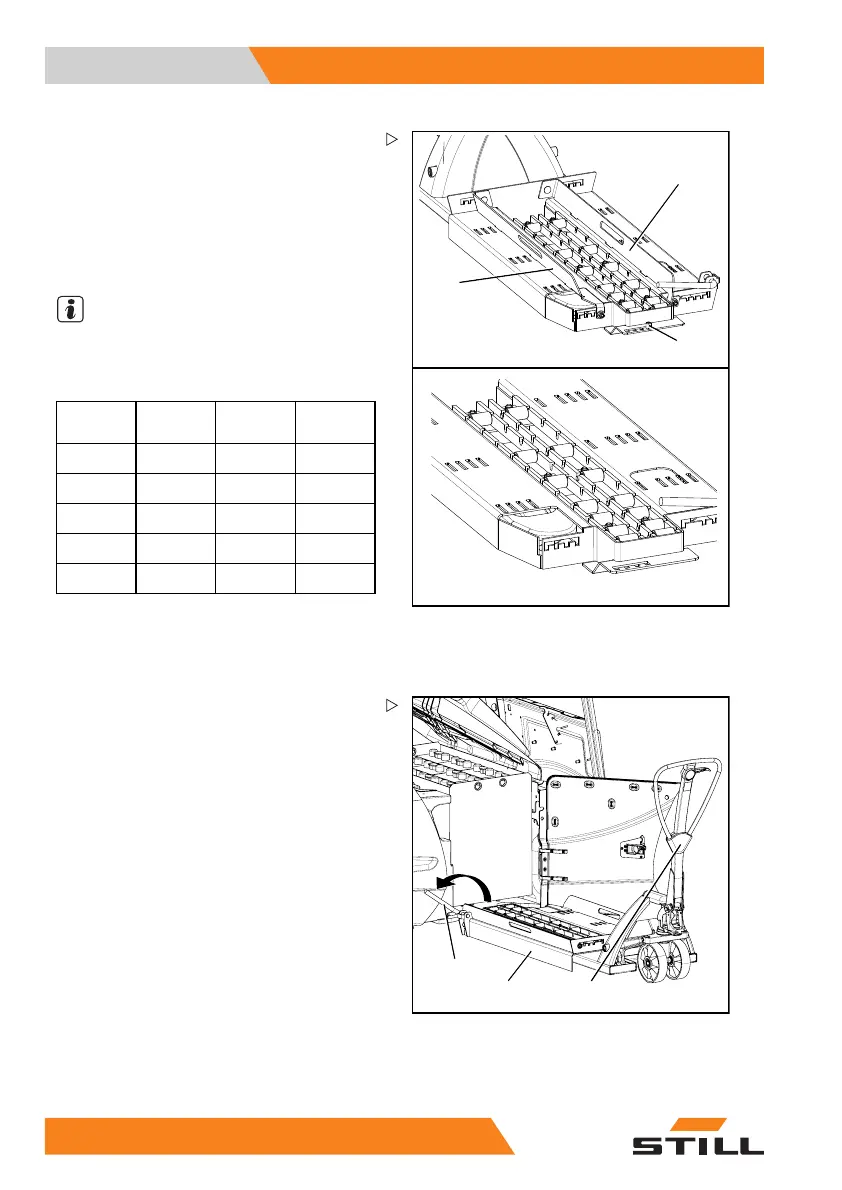

– Determine the battery type on the battery
identification plate.
– Position the deflector plates (A) and (B)
appropriately for the battery type, and bolt
them into place.
– Position the guide bolts (C) ap
propriately for
the battery type, and bolt th
em into place.
NOTE
The positions shown for the deflector plates
and the guide bolts can be found in the
following table.
Battery
type
(C) (A) (B)
4 Pzs 1 1 1
5 Pzs 1 1 2
6 Pzs 2 2 3
7 Pzs 3 3 4
8 Pzs 4 4 5
– Perform these act
ivities before removing
the battery; see t
he chapter entitled "Chang-
ing the battery us
ing the internal roller chan-
nel".
5060_003-151
5
6
7
– Fully open the safety lever (7) by moving it
in the direction of the arrow.
– Position the hand pallet truck (5) so that the
external roller channel (6) is in front of the
battery compartment of the truck.
27
4 55048011501 EN - 12/2015
