5 Operation
Working with loads
Before taking up load
2
1
780
910
1310
930
1230
680
1500
950
1260
690
1500
970
860
710
1500
1000
880
730
1500
600
500
640
1080
4830
4630
4230
3830
kg
3
5051_003-006
800
800
5030
660
5230
500
880

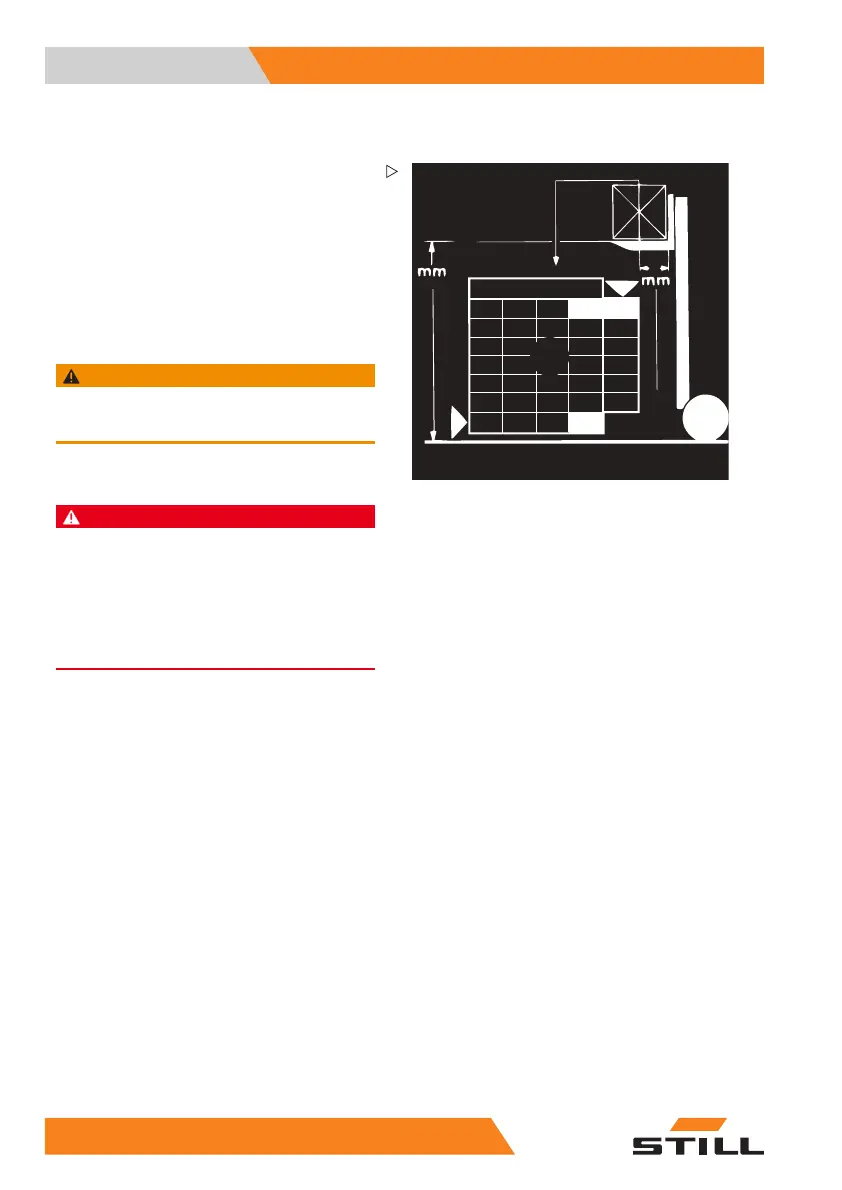

Load capacity
The load capacity indicated for the truck on the
capacity rating plate may not be exceeded.
The load capacity is influenced by the load
centre of gravity and the lift height as well as
by the tyres, if applicable.
The position of the capacity
rating plate can
be found in the chapter entit
led "Identification
points".
WARNING
The figures show examples.
Only the capacity rating plates on the truck are valid!
The attachment of additional weights to
increase load capacity is prohibited.
DANGER
Risk to life from the truck losing stability!
Never exceed the maximum loads shown! These
values apply to compact and homogenous loads.
Otherwise, the stability as well as the rigidity of the
fork arms and lift mast cannot be guaranteed.
Improper or incorrect operation or the placement of
persons to increase load capacity is prohibited.
14
8 55048011501 EN - 12/2015
