4 Overviews
Operating devices and display elem
ents

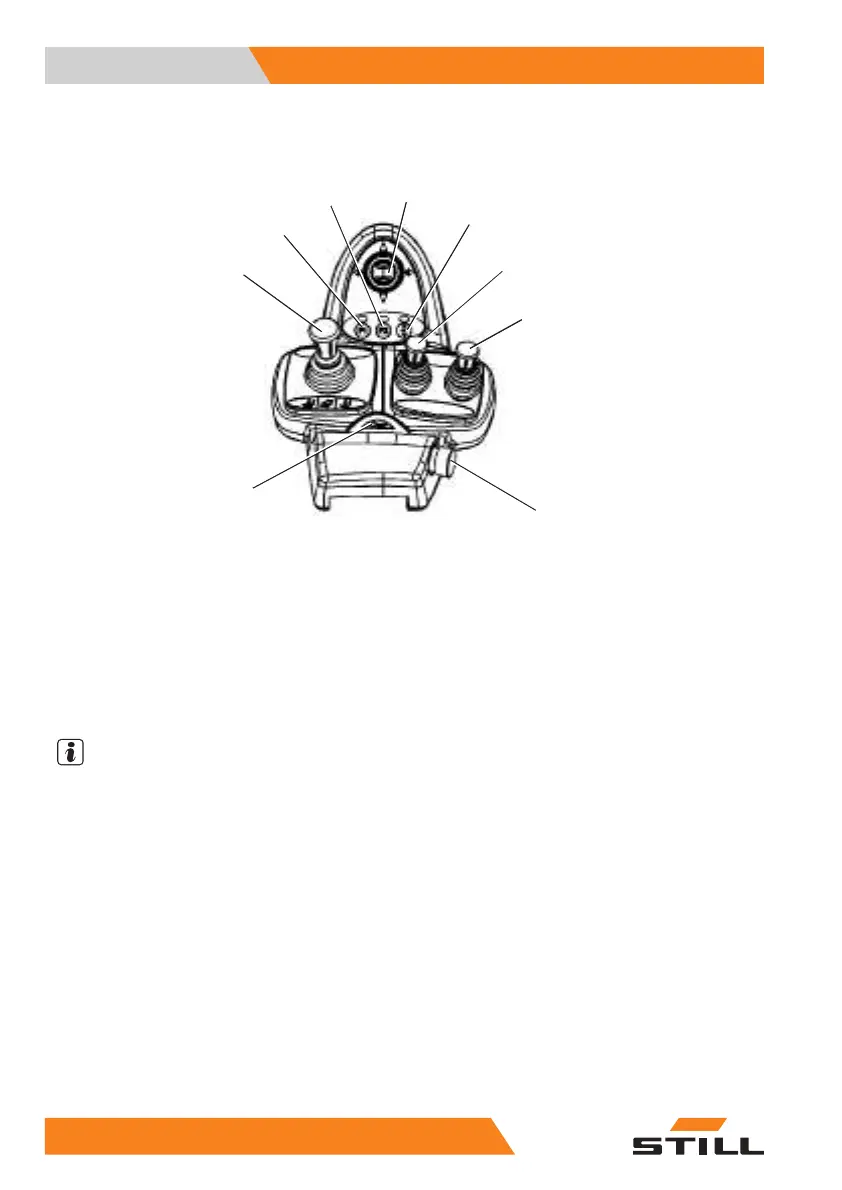

Three-way mini-lever
1
2
3
4
5
6
7
8
9
5060_003-089
1 "Lift mast" 360° lever
2 Function key F1
3 Function key F2
4 "Drive direction / turn indicator" cross lever
5 Function key "5th function"
6 "Auxiliary hydraulics 1" operating lever
7 "Auxiliary hydraulics 2" operating lever
8 Emergency stop switch
9 Signal horn button
NOTE
Depending on the specification, various
electric attachment parts can be controlled
via function keys (2) and (3). Changes must
only be made by the authorised service centre.
58
55048011501 EN - 12/2015
