Still RX50-13 - Page 151

Operation 5
Lifting
1
6210_003-091
E
F
7312_003-022_V2
DC
B
A

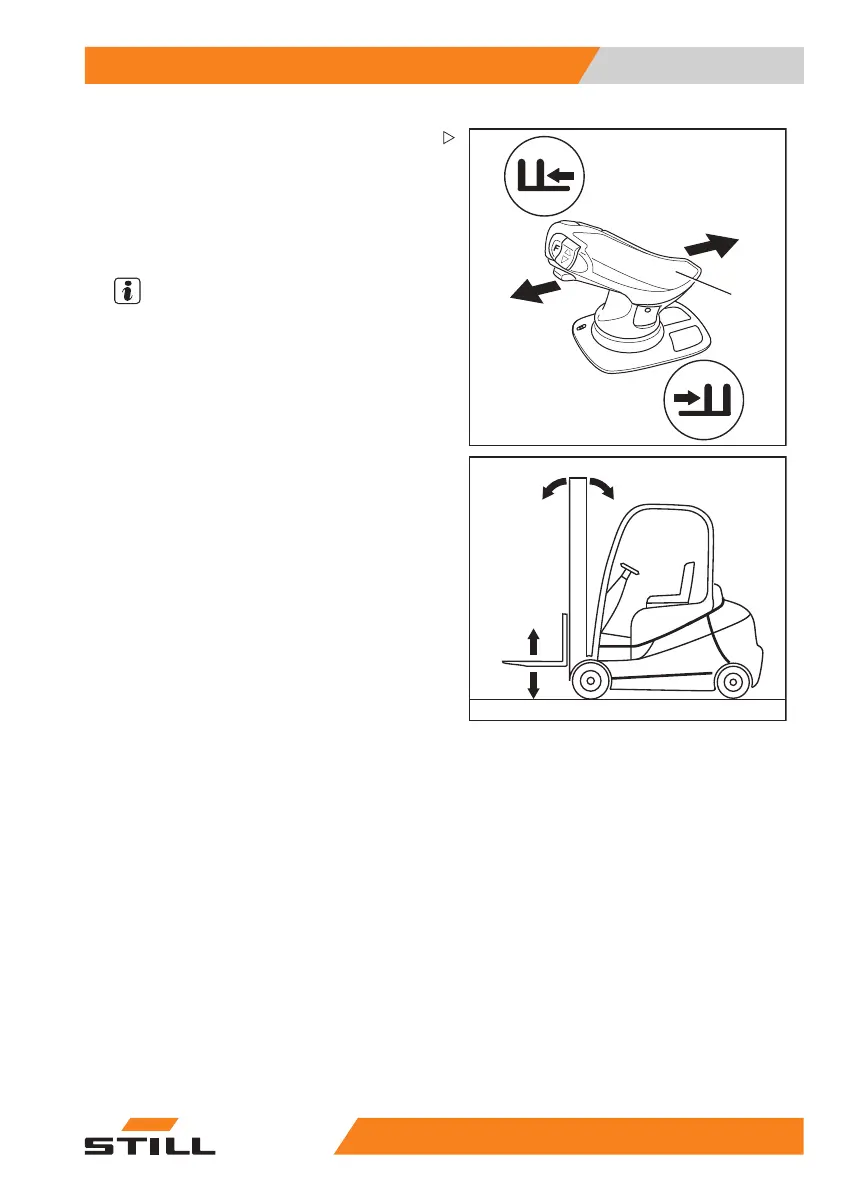

Fork-carriage sideshift
To move the fork carriage to the left.
– Push the joystick 4Plus (1) to t
he left (E).
To move the fork carriage to the right:
– Push the joystick 4Plus (1) to the right (F).
NOTE
The symbols on the joystick 4Plus indicate the
direction of movement of the lift mast or the
fork carriage.
55
048011501 EN - 12/2015 139
