5 Operation
Working with attachments
Multiple-lever
NOTE
Clamping attachments are only available as
a special solution when the truck is equipped
with this multi-lever variant. To operate the
clamp locking mechanism, please see the
operating instructions that correspond to the
special solution.
F1
F2
6210_003-077
1
2

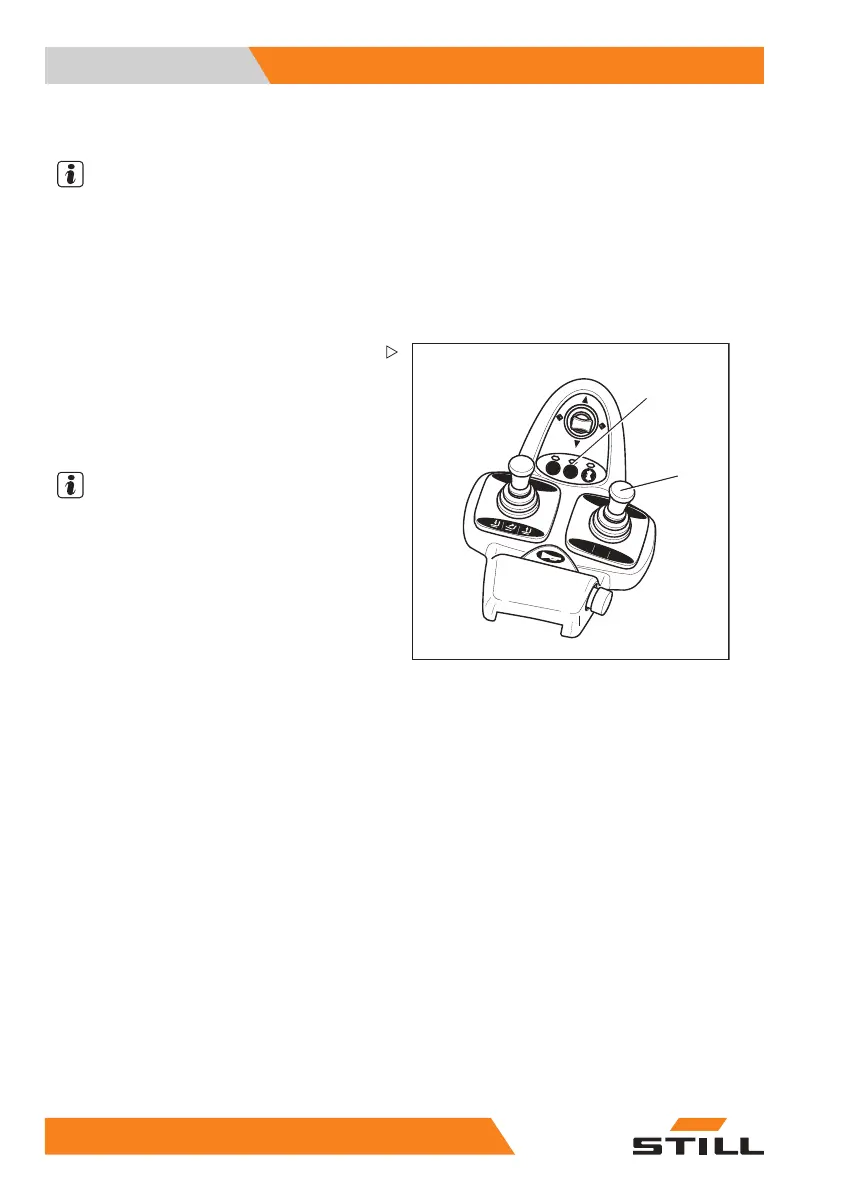

Double mini-lever
– To release the clamp locking mechanism,
push the operating lever (1) forwards.
The LED for button F2 (2) lights up as long as
the clamp locking mechanism is released.
NOTE
The hydraulic function for opening the clamp
is available for one second after the clamp
locking mechanism is released. After one
second, the clamp locking mechanism is
automatically reactivated.
– To open the clamp, push the control lever
(1) forwards again.
It is not necessary to release the clamp locking
mechanism in order to close the clamp.
– To close the clamp, pull the control lever (1)
back.
– To operate clamping attachments, see the
section entitled "Controlling attachments
using the double mini-lever and the 5th
function".
19
2 55048011501 EN - 12/2015
