5 Operation
Lifting

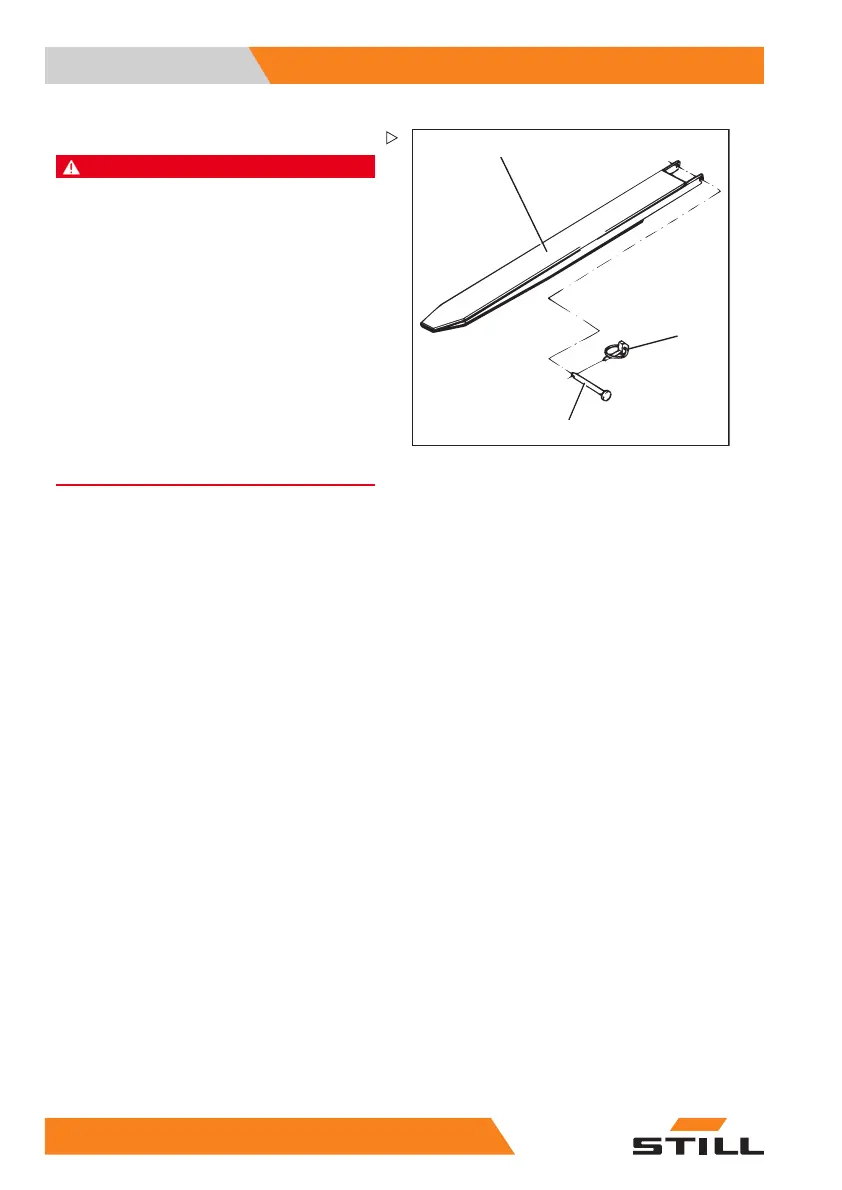

7071_003-104_V2
1
2
3
Attachment
DANGER
Risk to life from falling load!
At least 60% of the length of the fork extension must
lie on the fork arm. A maximum 40% overhang over
the fork arm end is permissible. The fork extension
must also be secured against slipping from the fork
arm.
If the fork extension (1) is not secured with a secu-
ring bolt (2) and linch pin (3), the load with the fork
extension may fall.
– Push the fork extension completely to the back
of the fork.
– Make sure that 60% of the length of the fork
extension is on the fork arm.
– Always secure the fork extension with a securing
bolt.
– Always secure the securing bolt with a linch pin.
– Remove the linch pin (3) from the securing
bolt (2).
– Remove the securing bolt from the fork
extension (1).
– Push the fork extension onto the fork arms
until it is flush with the fork back.
– Insert the securing bolts located behind the
fork back fully into the fork extension.
– Insert the linch pin into the securing bolt and
secure.
Removal
– Remove the linch pin (3) from the securing
bolt (2).
– Remove the securing bolt from the fork
extension (1).
– Pull the fork extension from the fork arms.
– Insert the securing bolt fully into the fork
extension.
– Insert the linch pin into the securing bolt and
secure.
14
4 55048011501 EN - 12/2015
