Operation 5
Lifting
6210_810-001
1

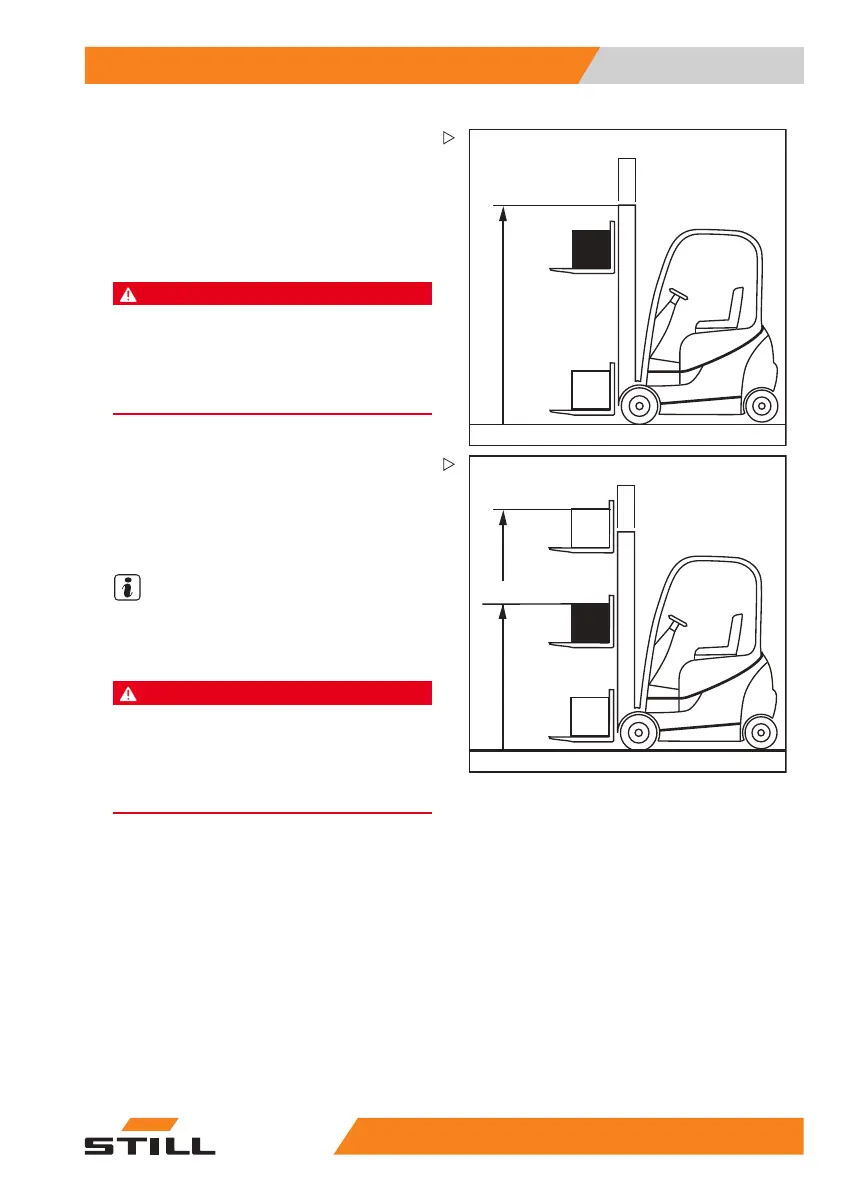

Telescopic mast
During lifting, the lift mast rises over the outer
lift cylinders, bringing the fork carriage with it
via the chains (fork carriage rises twice as fast
as the inner lift mast). The top edge (1) of the
inner lift mast can therefore be higher than the
fork carriage.
DANGER
Risk of accident due to collision of the lift mast or
load with low ceilings or entrances.
– Note that the inner lift mast or load may be higher
than the fork carriage.
– Note the heights of ceilings and entrances.
6210_810-002
2
3
Hi-Loliftmast(variant)
During lifting, the inner lift cylinder moves up
to free lift (3), and then the outer lift cylinders
raise the inner lift mast up to the max. height
(2).
NOTE
When lifting above the free lift, the fork car-
riage always remains at the upper edge of the
extending lift mast.
DANGER
Risk of accident due to collision of the lift mast or
load with low ceilings or entrances.
– Note that the inner lift mast or load may be higher
than the fork carriage.
– Note the heights of ceilings and entrances.
