Still RX50-13 - Page 90

5 Operation
Checks and operations prior to comm
issioning
7331_342-001
3
1
2

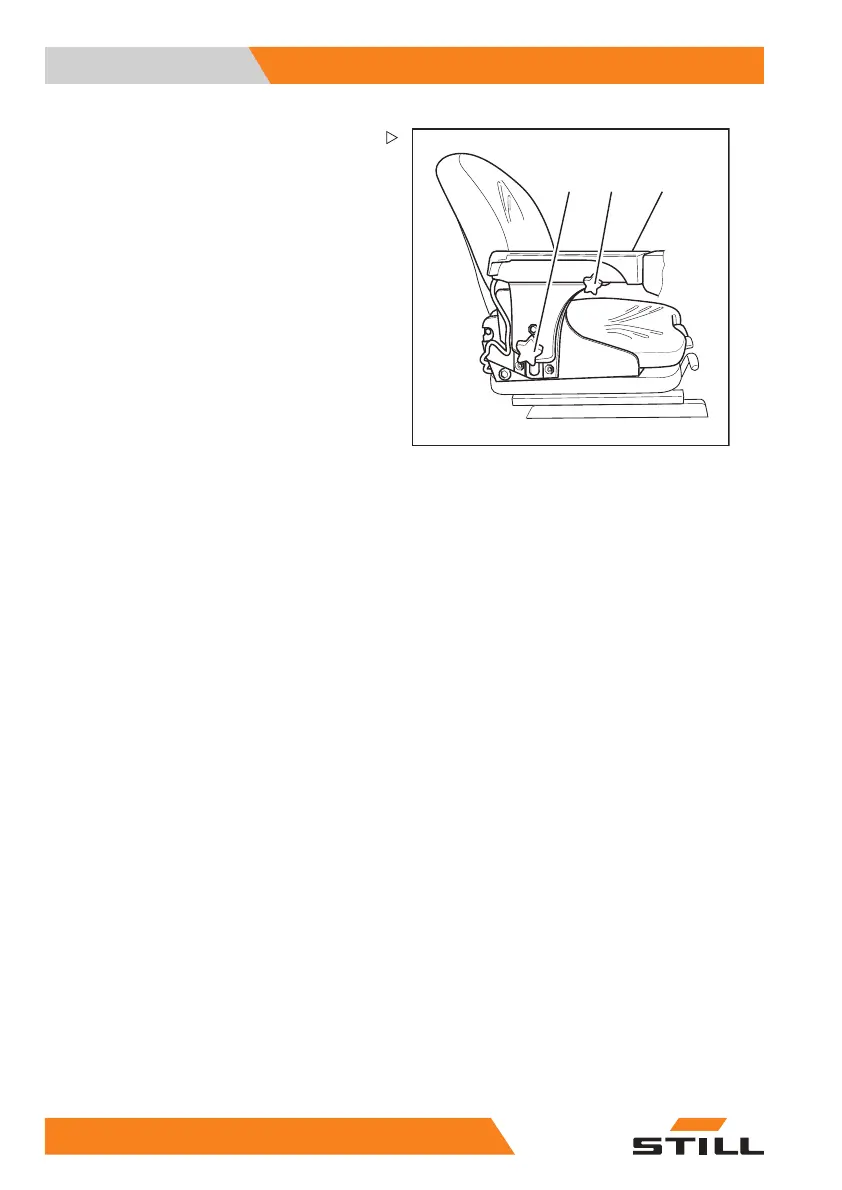

Adjusting the length of the armrest
– Release the star-grip handle (1) by turning
it anti-clockwise.
– Shift the armrest (2) into the d
esired posi-
tion.
– Tighten the star-grip handle by turning it
clockwise.
– Check that the armrest is firmly attached.
Adjusting the height of the armrest
– Release hand wheel (3) by tu
rning it anti-
clockwise.
– Shift the armrest (2) into the desired posi-
tion.
– Tighten the hand wheel by turning it clock-
wise.
– Check that the armrest is
firmly attached.
