MASTER block
85

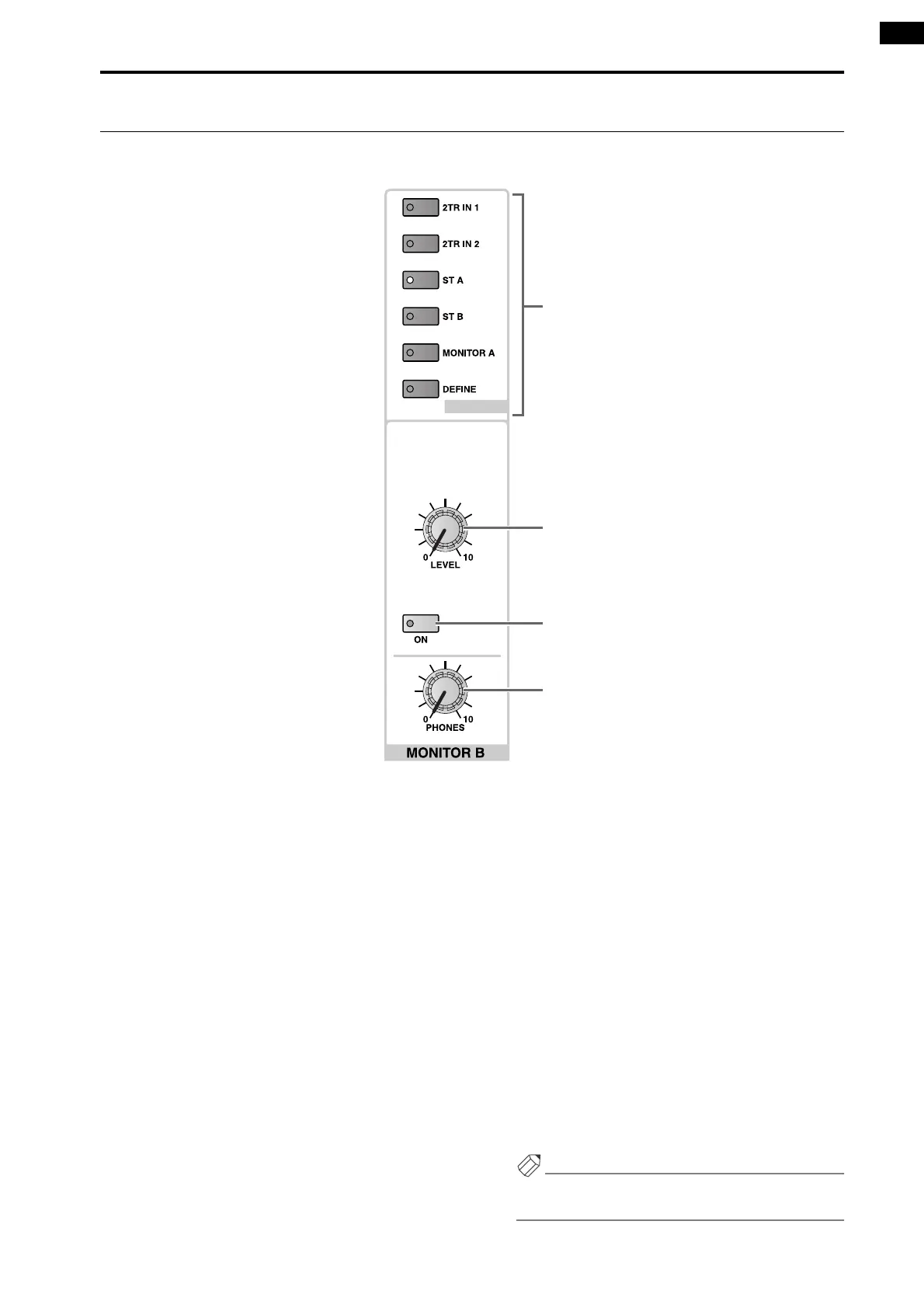

MONITOR B section
This section selects the monitor source for the MONITOR B output, and adjusts its level.
1 MONITOR B SOURCE [2TR IN 1]/[2TR IN 2]/[ST
A]/[ST B]/[MONITOR A]/[DEFINE] switches and
LEDs
These switches select the monitor source for the
MONITOR B outputs.
The switch LED for the currently selected source will
light. (It is not possible to select two or more
sources.)
Each switch corresponds to the following sources.
• [2TR IN 1] switch
Monitor the input signal from the 2-TRACK IN
DIGITAL 1 jack or 2-TRACK IN ANALOG 1 jacks
located on the rear panel of the CS1D.
The choice between analog and digital is made in the
display (MON/CUE function 2TR IN screen).
• [2TR IN 2] switch
Monitor the input signal from the 2-TRACK IN
DIGITAL 2 jack or 2-TRACK IN ANALOG 2 jacks
located on the rear panel of the CS1D.
The choice between analog and digital is made in the
display (MON/CUE function 2TR IN screen).
• [ST A] switch
Monitor the output signal of the STEREO A channel.
• [ST B] switch
Monitor the output signal of the STEREO B channel.
• [MONITOR A] switch
Monitor the signal that is selected as the monitor
source by the MONITOR A section.
If this switch is selected, the CUE bus can also be
monitored by the MONITOR B section.
• [DEFINE] switch
Monitor the signal (MIX 1–48, MATRIX 1–24, 2TR
IN 3–6, or DIRECT IN) that was previously defined
by the user in the display (MON/CUE function
MONITOR B screen).
2 MONITOR B [LEVEL] volume
This is an analog volume that sets the MONITOR B
output level.
Hint
The value of this level cannot be stored in a scene or
controlled from outside (or by the internal software).
SOURCE
1
2
3
4
