MATRIX OUTPUT block
47
MATRIX OUTPUT block channel assignments
The MATRIX channel section of the MATRIX OUTPUT block contains 12 modules.
When the PM1D system is in its default state, these modules are assigned to control MATRIX channels 1–12.
However, these assignments can be changed as follows by an operation in the MATRIX LAYER section.

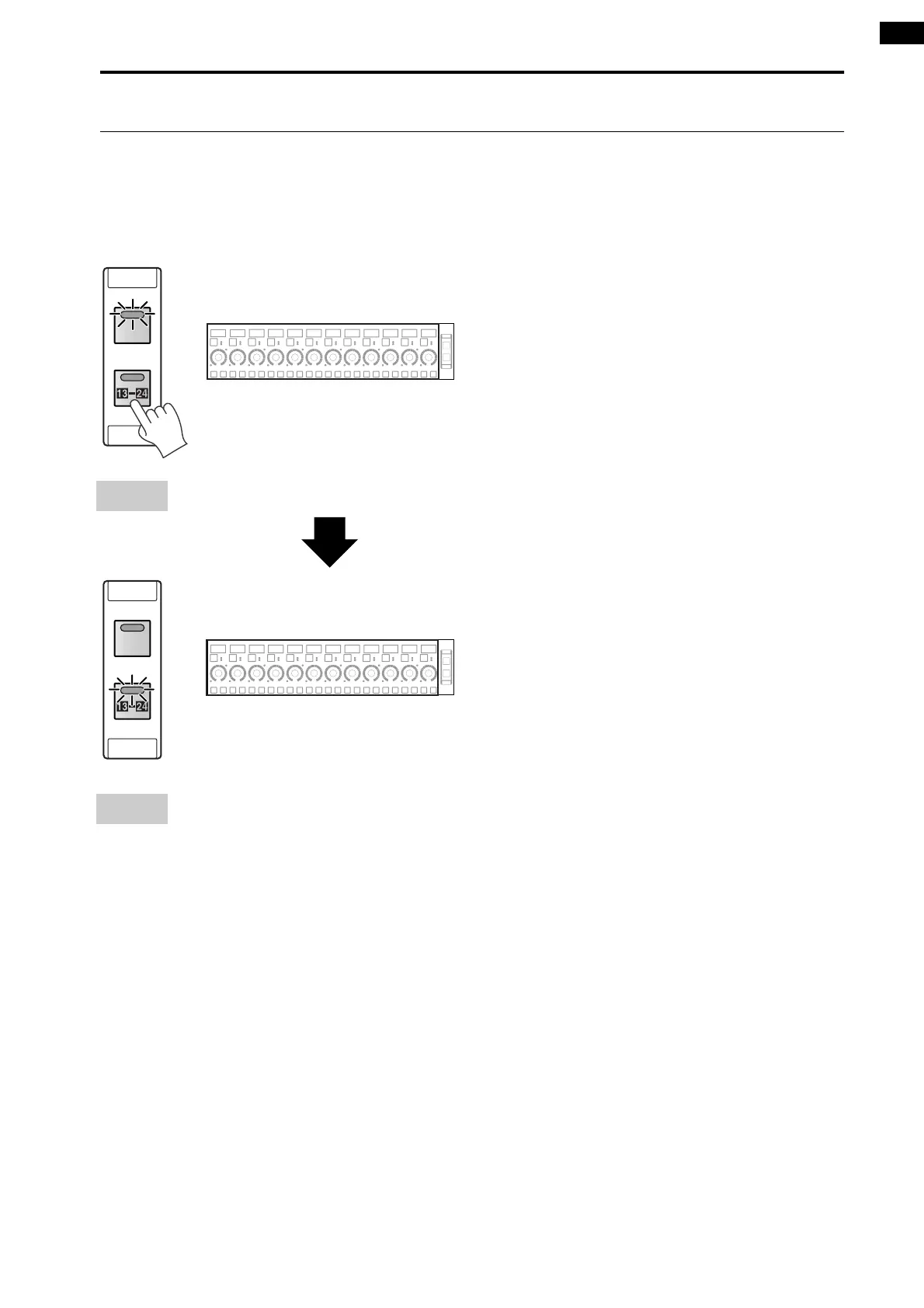

Using the MATRIX LAYER switches to change the
MATRIX channel assignments
1
-
12
MATRIX
LAYER
1
-
12
MATRIX
LAYER
MATRIX 1-12
MATRIX 13-24
MATRIX OUTPUT block
MATRIX OUTPUT block
