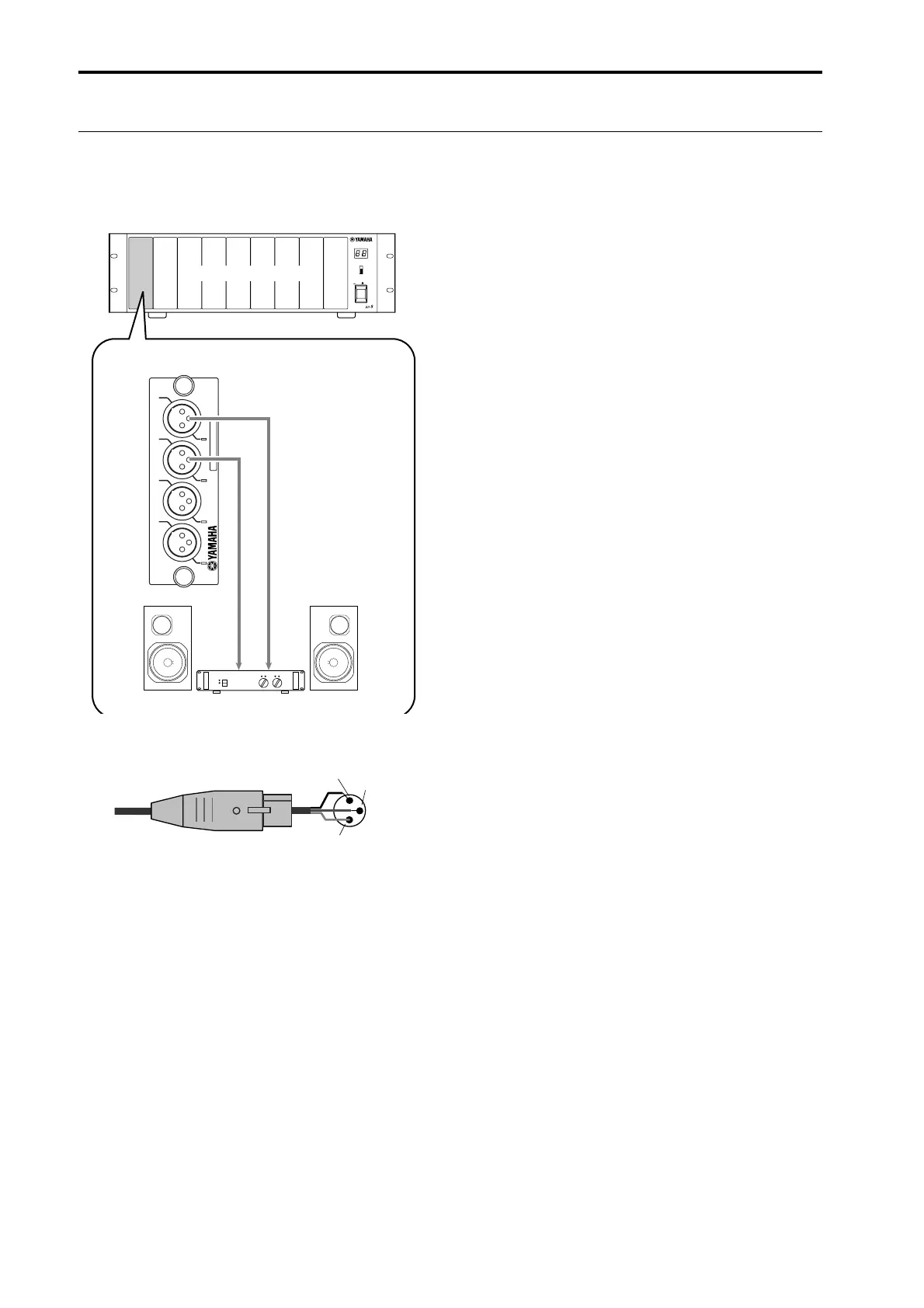

Audio connections for an analog output unit
An LMY4-DA DA card installed in the AO8 analog output unit provides four channels of XLR-3-32 (balanced) output
jacks.
• LMY4-DA connections
The pin wiring is as follows.
• Output jack wiring
12345 67
OUTPUT UNIT NO.
INPUT SELECTOR
A
B
POWER
ON/ OFF
8
ANALOG OUTPUT BOX
LMY4-DA DA-Platine
ANALOG OUT
DA CARD MODEL LMY4-DA
SIGNAL SIGNAL SIGNAL SIGNAL
CH4 CH3 CH2 CH1
Speaker system
AO8 analog output unit
Female XLR plug
1 (ground)
3 (cold)
2 (hot)
