Chapter 16. Various settings
151
Specifying the metering points
The metering point (the location at which the level is detected) for the level meters on the CS1D console can be specified
independently for input channels and output channels.
Input channel metering point
Here’s how to set the metering point for the input levels displayed by the level meters of the INPUT block/ST IN block.
[Procedure]

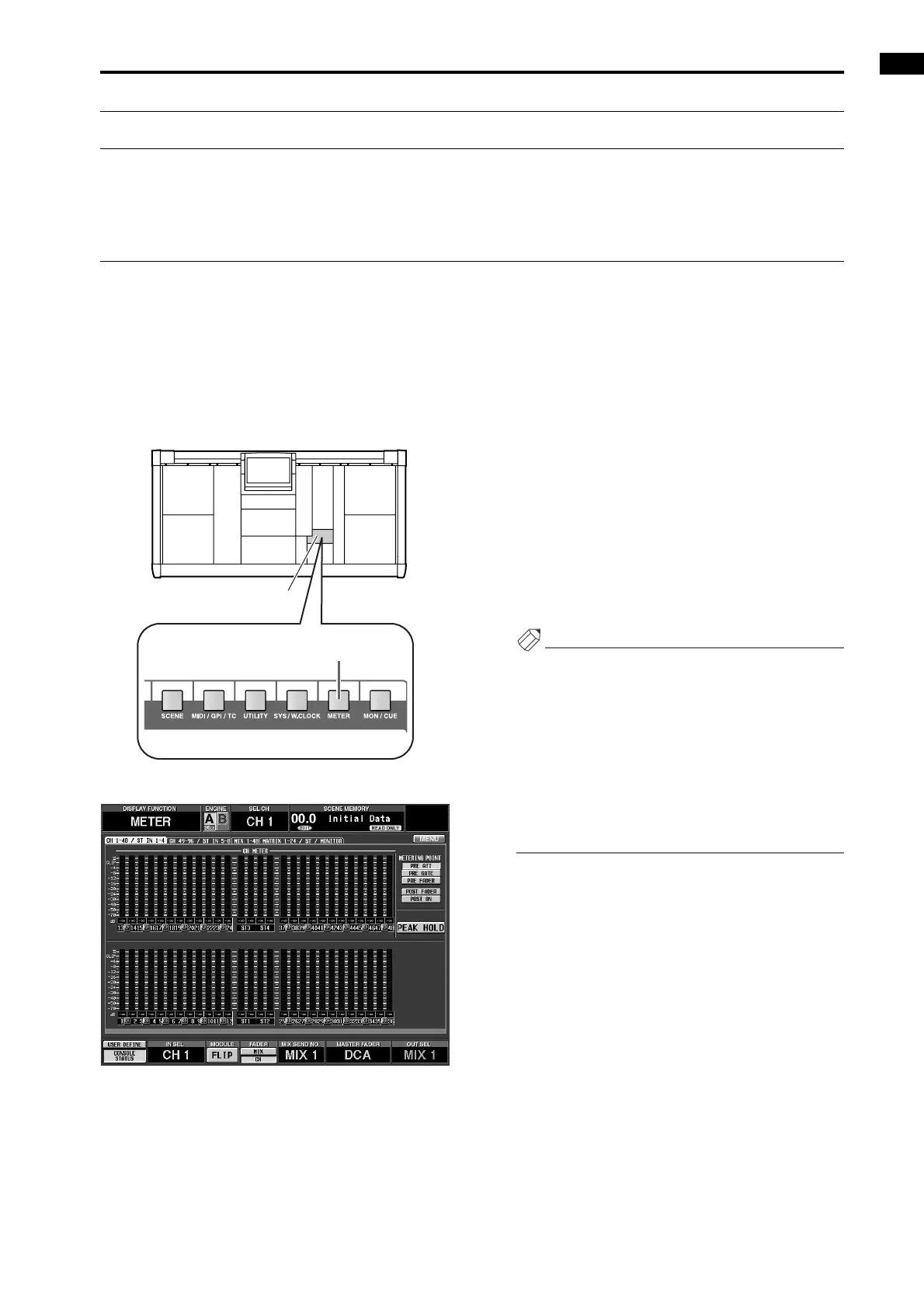

1. In the LCD FUNCTION ACCESS block, press the
[METER] switch several times to access the CH 1-
48/STIN 1-4 screen or the CH 49-96/STIN 5-8
screen. {The CH 49-96/STIN5-8 screen is not valid
for the 48 CH model.}
• CH 1-48/STIN 1-4 screen (METER function)
The CH 1-48/STIN 1-4 screen and CH 49-96/STIN
5-8 screen show virtual level meters that indicate the
input levels of the input channels. In this screen you
can also select the metering point for the input chan-
nels.
2. Use the buttons located at the right of the screen to
select the metering point at which the input level
will be detected.
The following metering points can be selected.
• PRE ATT............. Before the attenuator
• PRE GATE.......... Immediately before the internal
gate
• PRE FADER ....... Immediately before the fader
• POST FADER .... Immediately after the fader
• POST ON ........... Immediately after the [ON]
switch
3. If you want the peak level display of the input chan-
nels to be held, turn on the PEAK HOLD button.
Hint
Steps 2 and 3 will affect the following level meters.
• Level meters of the INPUT block/ST IN block
• Level meters of the SELECTED INPUT CHAN-
NEL block
• Level meters of the CH 1-48/STIN 1-4 screen and
CH 49-96/STIN 5-8 screen
However, the METER [PEAK HOLD] switch in the
MASTER block of the CS1D will affect only the CLIP
LED of the SELECTED INPUT CHANNEL block.
LCD FUNCTION ACCESS
block
[METER] switch
To Next Page
